Product Detailed Parameters
- Description：2x Frequency Multiplier, 2500 MH
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Frequency Multiplier
- Frequency：1.25GHz ~ 3GHz, 2.5GHz ~ 6GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

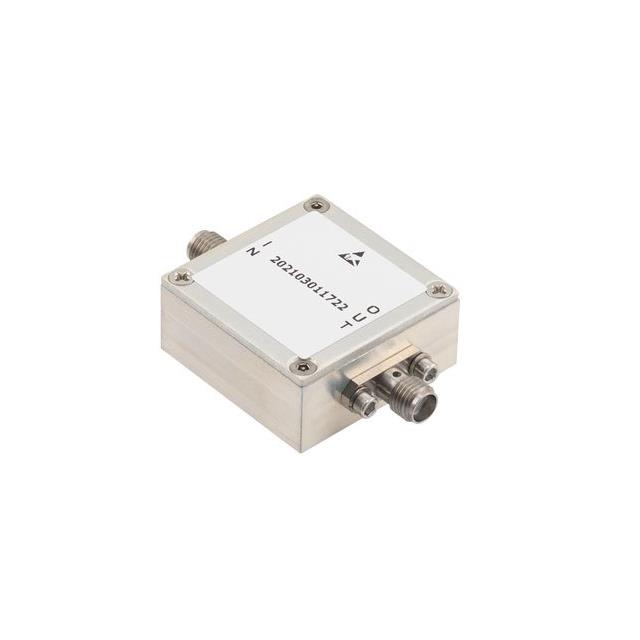

The PE88X2012 is a signal conditioning component manufactured by Pasternack, classified as an RF coaxial frequency multiplier. It features SMA connectors and operates with a 50 Ohm impedance system. The device functions as a 2x frequency multiplier, providing an output frequency range from 2500 MHz to 6000 MHz. It exhibits a conversion loss of 15 dB within this operational bandwidth.
Feature Summary
- Functions as a 2x frequency multiplier for signal conditioning applications
- Utilizes SMA connectors for interface connectivity
- Operates within a 50 Ohm impedance system
Applications
- RF signal generation systems requiring frequency doubling
- Wireless communication infrastructure components
- Test and measurement equipment signal processing
Procurement Notes
Verify the specific datasheet version provided by the manufacturer or authorized distributor to confirm current technical specifications and compliance status. Ensure that the SMA connector type and 50 Ohm impedance requirements align with the target system design before procurement. Cross-reference the part number PE88X2012 with official Pasternack documentation to validate availability and lead times through authorized channels.
Selection Notes
Select this component when a 2x frequency multiplication function is required within the 2500 MHz to 6000 MHz output range. Consider the 15 dB conversion loss impact on system power budget. Ensure compatibility with SMA interfaces and 50 Ohm system impedance. Evaluate thermal management requirements based on the expected input power levels and application environment constraints.
Part Context
This component belongs to Pasternack's signal conditioning product line, specifically designed for RF and wireless applications. It serves as a specialized module for frequency conversion tasks, distinct from passive attenuators or amplifiers. The device integrates active frequency multiplication capabilities into a compact coaxial form factor suitable for integration into larger RF systems.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify functional equivalence regarding frequency range, conversion loss, and connector type if considering alternative manufacturers.
