Product Detailed Parameters
- Description：2x Frequency Multiplier, 4000 MH
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Frequency Multiplier
- Frequency：2GHz ~ 4GHz, 4GHz ~ 8GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

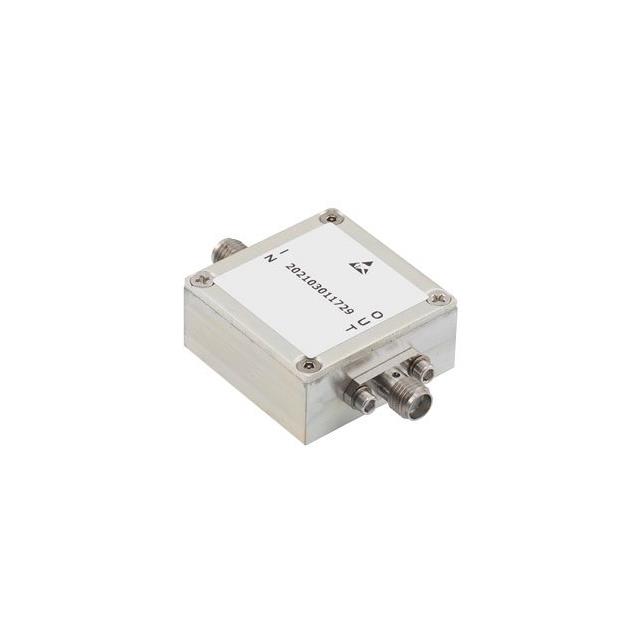

The Pasternack PE88X2013 is a coaxial frequency multiplier designed for signal conditioning applications. It features SMA connectors and operates with a 50 Ohm impedance. The device functions as a 2x frequency multiplier, providing an output frequency range of 4000 MHz to 8000 MHz. It exhibits a conversion loss of 14 dB within this operational band.
Feature Summary
- Functions as a 2x frequency multiplier for signal conditioning
- Utilizes SMA connector interface
- Operates at 50 Ohm system impedance
Applications
- Signal conditioning systems requiring frequency doubling
- RF test and measurement equipment
- Wireless communication infrastructure
Procurement Notes
Verify the specific datasheet version and manufacturer documentation to confirm electrical parameters and mechanical dimensions. Ensure compatibility with existing SMA interfaces and 50 Ohm system requirements before integration. Check for any recent product lifecycle updates or obsolescence notices from the manufacturer.
Selection Notes
Select this component when a 2x frequency multiplication function is required within the 4000 MHz to 8000 MHz output range. Consider the 14 dB conversion loss impact on system gain budget. Verify that SMA connectors meet the physical interface constraints of the target application.
Part Context
This part belongs to Pasternack's RF and wireless component portfolio, specifically categorized under signal conditioning devices. It is distinct from passive cable assemblies and active amplifiers, serving a specialized role in frequency generation and manipulation within RF circuits.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative frequency multipliers based on matching output frequency ranges, connector types, and impedance specifications.
FAQ
What is the output frequency range of the PE88X2013?
The PE88X2013 provides an output frequency range of 4000 MHz to 8000 MHz.
What type of connectors does the PE88X2013 use?
The device utilizes SMA connectors for its input and output interfaces.
