Product Detailed Parameters
- Description：Active 3x Frequency Multiplier,
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Frequency Multiplier
- Frequency：950MHz ~ 1.5GHz, 2.85GHz ~ 4.5GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

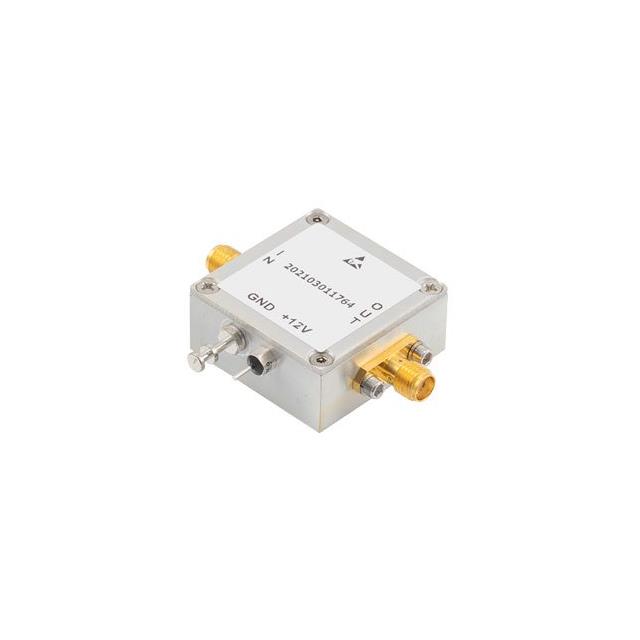

The PE88X2020 is an active frequency multiplier manufactured by Pasternack. It features SMA connectors and a 50 Ohm impedance design. The device operates with a minimum input frequency of 950 MHz, producing an output frequency range of 2850 MHz to 4500 MHz. It provides a conversion gain of 9 dB. This component is classified as a general-purpose RF IC frequency multiplier suitable for signal processing applications requiring frequency multiplication within the specified microwave bands.
Feature Summary
- Active frequency multiplication functionality
- SMA connector interface
- 50 Ohm system impedance
Applications
- General purpose RF signal processing
- Microwave frequency generation systems
- Signal conditioning circuits
Procurement Notes
Verify the exact part number against official Pasternack documentation to ensure compatibility with your specific frequency requirements. Confirm that the SMA connector type and 50 Ohm impedance align with your system design. Check current availability status through authorized distributors, as supply levels may vary. Ensure that the input frequency range meets the minimum 950 MHz requirement for proper operation.
Selection Notes
Select this component when an active frequency multiplier is required for converting lower frequency signals to the 2.85 GHz to 4.5 GHz range. Consider the 9 dB conversion gain and SMA connectivity for integration into existing RF infrastructure. Evaluate the need for active versus passive multiplication based on gain requirements and power consumption constraints in the target application environment.
Part Context
This component belongs to Pasternack's portfolio of RF and microwave modules. It is designed for use in systems requiring reliable frequency translation. The product line focuses on providing standardized solutions for signal integrity and frequency manipulation in communication and measurement equipment.
Replacement Considerations
Consult official Pasternack documentation for confirmed substitute part numbers. Verify that any replacement maintains the same output frequency range, connector type, and impedance characteristics to ensure system compatibility.
