PE88X2026

Overview

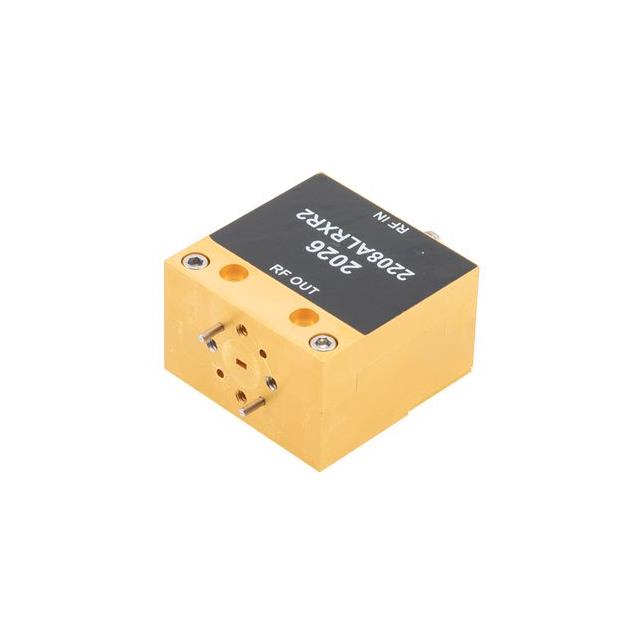

The Pasternack PE88X2026 is a general-purpose RF frequency multiplier module designed for high-frequency signal generation. It operates within an input frequency range of 12.5 GHz to 18.33 GHz, producing output frequencies between 75 GHz and 110 GHz. The component utilizes SMA connectors for interface connectivity, facilitating integration into microwave test and measurement systems. This module provides a compact solution for generating millimeter-wave signals from lower input frequencies.

Feature Summary

• Performs frequency multiplication across the specified input and output bands
• Utilizes standard SMA connector interfaces for signal transmission
• Designed as a general-purpose module for broad application compatibility

Applications

• Millimeter-wave signal generation in test equipment
• Frequency synthesis for radar systems
• Microwave communication system development

Procurement Notes

Verify the specific output harmonic order and required input drive power levels against your system design before procurement. Confirm that the SMA connector gender and mating requirements align with your existing cabling infrastructure. Ensure thermal management provisions are adequate for the module's operational dissipation characteristics.

Selection Notes

Select this module when a wide tuning range from 75 GHz to 110 GHz is required from a single input source. Consider the input frequency stability and phase noise contributions of the multiplier stage relative to your local oscillator performance. Evaluate the physical footprint and mounting requirements for integration into your chassis or PCB layout.

Part Context

This component belongs to Pasternack's portfolio of RF ICs and modules, specifically targeting high-frequency applications. It serves as a building block for systems requiring frequency conversion without discrete multipliers. The product line focuses on providing reliable interconnect and active components for microwave engineering tasks.
