PE88X2028

Overview

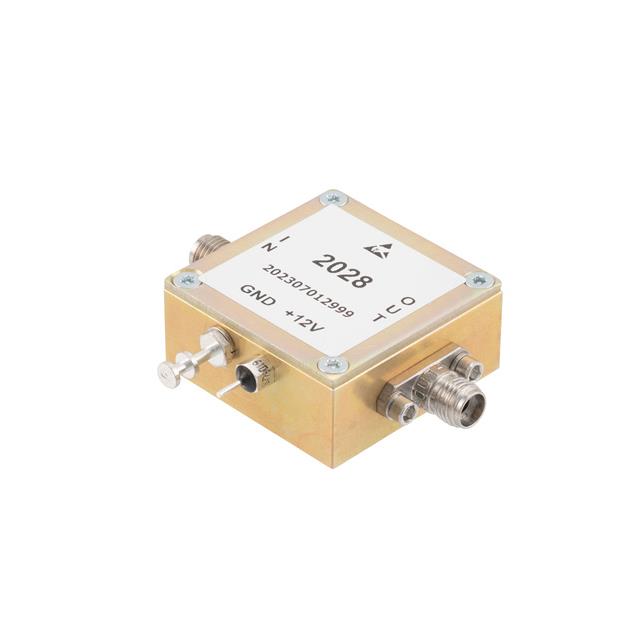

The Pasternack PE88X2028 is an active frequency multiplier designed for millimeter-wave applications. It functions as a 2x multiplier with an output frequency range of 23 GHz to 33 GHz. The device provides a conversion gain of 12.0 dB. It utilizes SMA connectors for interfacing.

Feature Summary

• Active signal processing architecture
• Frequency multiplication capability
• Millimeter-wave operation

Applications

• Signal generation systems
• Test and measurement equipment
• Communication subsystems

Procurement Notes

Verify the specific datasheet version before integration, as specifications may be updated by the manufacturer. Confirm that SMA connector compatibility matches your system interface requirements. Ensure power supply conditions align with the active component design to maintain the stated 12.0 dB conversion gain within the 23 to 33 GHz output range.

Selection Notes

Select this component when a fixed 2x multiplication ratio is required for frequencies up to 33 GHz. The active design offers higher conversion gain compared to passive alternatives. Verify that the SMA interface suits your board layout constraints. Consider thermal management needs associated with active semiconductor devices operating in the millimeter-wave spectrum.

Part Context

This part belongs to Pasternack's portfolio of RF and microwave components. It serves as a specialized signal conditioning element rather than a passive cable assembly. The device addresses specific frequency translation needs in high-frequency electronic designs where harmonic generation or frequency synthesis is necessary.

Replacement Considerations

No public substitute part numbers are documented for this specific model.
