PE88X2029

Overview

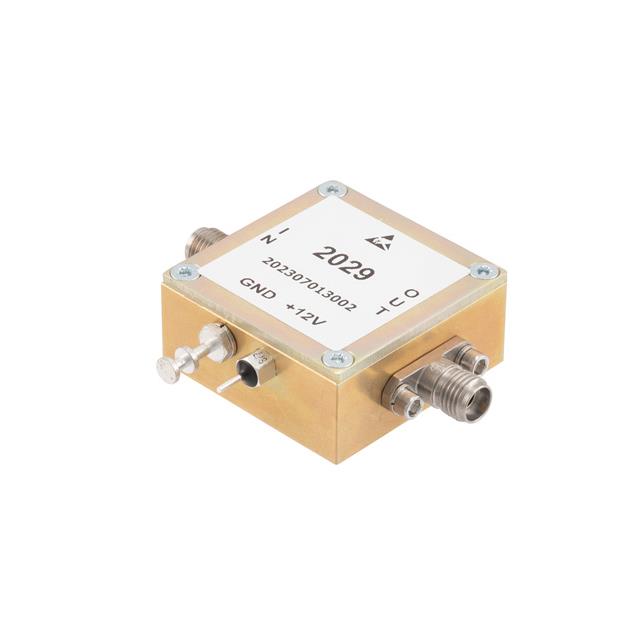

The PE88X2029 is a signal conditioning component manufactured by Pasternack, classified as an active frequency multiplier. It operates within the SMA Frequency Multipliers series and utilizes SMA connectors for interface connectivity. The device functions as a 2x active frequency multiplier with an output frequency range of 13 GHz to 24.5 GHz. It provides a conversion gain of 12.0 dB. The unit weight is specified as part of the product attributes.

Feature Summary

• Functions as a dual-stage active frequency multiplier for signal conditioning applications
• Provides high conversion gain to amplify signal levels during frequency multiplication
• Designed for operation in the millimeter wave spectrum using standard SMA interfaces

Applications

• Electronic countermeasure systems requiring frequency translation
• Radar subsystems needing local oscillator generation
• Satellite communication uplink and downlink chains
• Research and development test equipment for high-frequency analysis

Procurement Notes

Verify the specific datasheet version for the PE88X2029 before integration, as active RF components often have strict handling requirements. Confirm that the input drive level matches the multiplier's optimal operating point to ensure the stated 12.0 dB conversion gain is achieved. Ensure SMA connector mating cycles are respected to maintain impedance integrity at frequencies up to 24.5 GHz.

Selection Notes

Select the PE88X2029 when a compact solution for doubling input frequencies into the 13-24.5 GHz range is required. This component is suitable for designs prioritizing conversion gain over passive loss. Engineers should account for the thermal management needs of active devices compared to passive adapters. Verify compatibility with existing SMA infrastructure in the signal chain.

Part Context

This component belongs to Pasternack's portfolio of RF, microwave, and millimeter wave products. It falls under the category of signal conditioning modules rather than simple passive interconnects. The PE88X2029 complements other frequency multipliers like the PE88X2028, which targets different frequency bands, allowing system designers to cover broader spectral ranges with consistent interface standards.

Replacement Considerations

The PE88X2028 is a documented alternative from the same manufacturer offering similar functionality but targeting a different output frequency range (23 GHz to 33 GHz). Designers must verify if the lower output band of the PE88X2029 meets their specific application requirements before substituting.
