PE9852B/2F-15

Antennas RF Overview

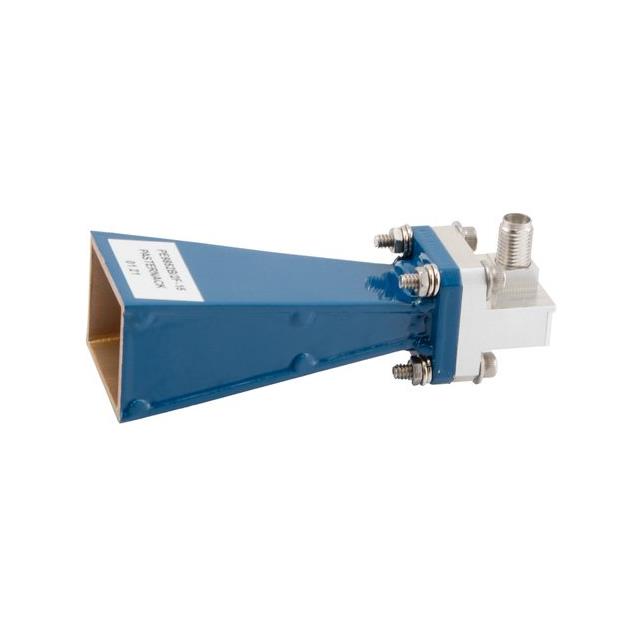

The Pasternack PE9852B/2F-15 is a WR-42 waveguide standard gain horn antenna designed for operation within the 18 GHz to 26.5 GHz frequency range. It features a nominal gain of 15 dB and utilizes a 2.92mm female input connector. The unit includes a UG-597/U square cover flange interface. Technical specifications indicate a typical vertical beam width of 31.5 degrees. The device is constructed as a directional antenna component suitable for high-frequency RF applications.

Antennas RF Feature Summary

• Utilizes WR-42 waveguide design for standard gain performance
• Features 2.92mm female input connector interface
• Includes UG-597/U square cover flange configuration

Antennas RF Applications

• Microwave communication systems
• Test and measurement instrumentation
• Radar system components

Antennas RF Procurement Notes

Verify exact part designation against official datasheets, noting variations such as suffixes like /2F-15 versus -15. Confirm mechanical compatibility with existing waveguide infrastructure and connector interfaces prior to integration. Ensure operational frequency requirements align strictly with the specified 18 GHz to 26.5 GHz range for optimal performance.

Antennas RF Selection Notes

Select this model when a fixed 15 dB gain is required for the K-band spectrum. Compare against other variants in the series offering different gain levels or beam widths based on specific directivity needs. Ensure the 2.92mm input connector matches the source equipment interface requirements for seamless signal transmission.

Antennas RF Part Context

This component belongs to the Pasternack Directional Antennas series, specifically focusing on waveguide horn designs. It serves as a specialized RF antenna solution for frequencies above 18 GHz. The product line emphasizes standardized gain characteristics and robust waveguide construction for reliable high-frequency signal handling.

Antennas RF Replacement Considerations

Consider models PE9852B/2F-10 or PE9852B/2F-20 if different gain levels are required. Verify that any substitute maintains the WR-42 waveguide size and 2.92mm female connector type to ensure mechanical and electrical compatibility.
