PE9858B-10-CPRG

Antennas RF Overview

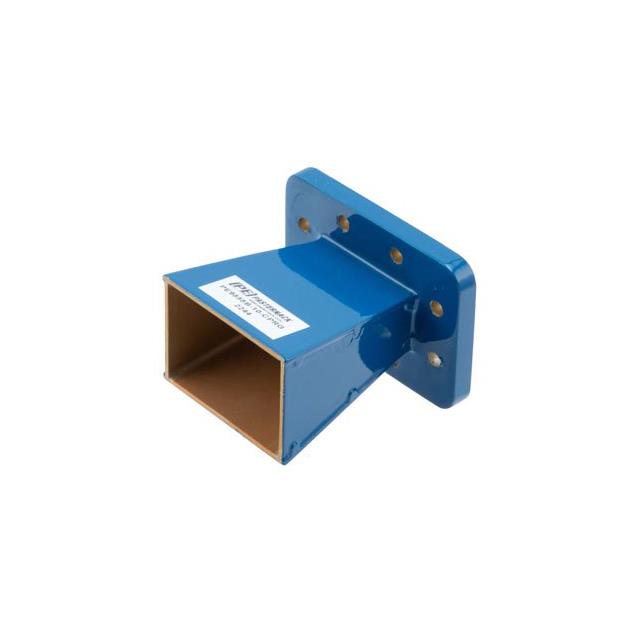

The PE9858B-10-CPRG is a WR-112 waveguide standard gain horn antenna manufactured by Pasternack. It operates within the frequency range of 7.05 GHz to 10 GHz. The component features a nominal gain of 10 dBi and utilizes an N female input connector. The flange configuration is designated as CPRG, corresponding to EIA/IEC/UK standards for WR-112/R-84/WG-15 waveguides.

Antennas RF Feature Summary

• Standard gain horn design optimized for measurement applications
• Compatible with WR-112 waveguide dimensions and CPRG flange interface

Antennas RF Applications

• Measurement standards
• Antenna characterization
• RF system testing

Antennas RF Procurement Notes

Verify that the specific CPRG flange designation matches the required EIA/IEC/UK WR-112 interface specifications for the intended application. Confirm the operating frequency range aligns with system requirements. Ensure the N female input connector type is compatible with existing test equipment or feed lines before finalizing procurement.

Antennas RF Selection Notes

Select this model when a fixed 10 dBi gain is required for the 7.05–10 GHz band. The CPRG flange must be verified against mechanical constraints. Consider the N female connector for interfacing needs. This unit serves as a reference standard rather than a high-gain transmission element.

Antennas RF Part Context

This component belongs to the WR-112 Waveguide Standard Gain Horn Antenna series from Pasternack. It is designed for precise RF measurements in the C-band spectrum. The CPRG variant specifies the flange geometry, distinguishing it from other waveguide mounting styles within the same product family.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative models based on identical WR-112 dimensions and CPRG flange specifications.
