PE9858B-20

Antennas RF Overview

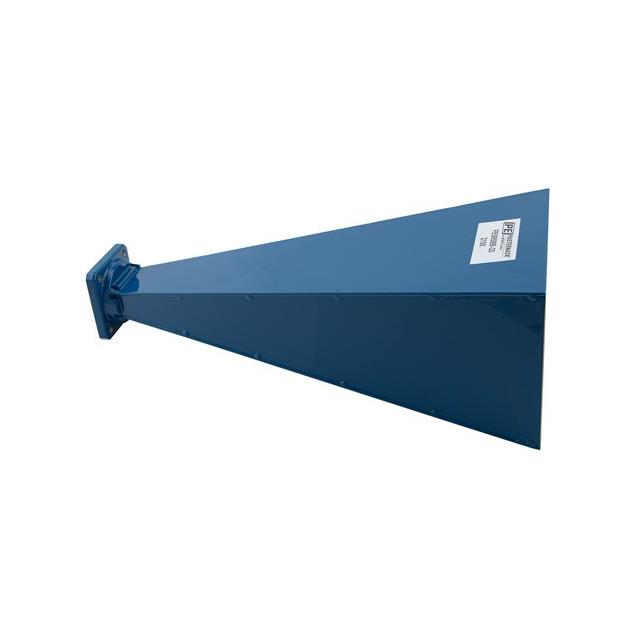

The PE9858B-20 is a standard gain horn antenna manufactured by Pasternack, designed for WR-112 waveguide applications. It operates within a frequency range of 7.05 GHz to 10 GHz and provides a nominal gain of 20 dBi. The unit features an N female input connector and utilizes a square cover flange configuration. This component is categorized under directional antennas and is intended for use in RF and wireless systems requiring precise signal transmission or reception within the specified microwave band.

Antennas RF Feature Summary

• Standard gain horn design optimized for WR-112 waveguide integration
• N female input connector for standardized interfacing
• Square cover flange configuration for secure mounting

Antennas RF Applications

• RF and wireless communication systems
• Microwave signal transmission
• Antenna testing and measurement setups

Antennas RF Procurement Notes

Verify compatibility with WR-112 waveguide systems before procurement. Confirm that the N female input aligns with existing cable assemblies. Ensure the operating environment supports the 7.05 GHz to 10 GHz frequency range. Check for any specific mounting requirements associated with the square cover flange design to guarantee proper installation and performance.

Antennas RF Selection Notes

Select this model when a 20 dBi gain is required within the 7.05 GHz to 10 GHz spectrum. Consider the N female interface for connector compatibility. Evaluate the WR-112 waveguide size against available space. Compare against other Pasternack horn antennas if different gain levels or frequency ranges are needed for the specific application.

Antennas RF Part Context

This antenna belongs to Pasternack's directional antenna series, specifically engineered for high-frequency operations. It complements their portfolio of RF components by providing reliable performance in microwave bands. The product is distinct from lower-frequency coaxial assemblies and focuses on waveguide-based transmission solutions for specialized industrial and scientific uses.

Antennas RF Replacement Considerations

Consider the PE9858B/NF-20 variant if an N female input is explicitly preferred over the standard configuration. Verify that alternative models maintain the same WR-112 waveguide dimensions and 20 dBi gain specifications to ensure seamless integration without redesigning the surrounding hardware.
