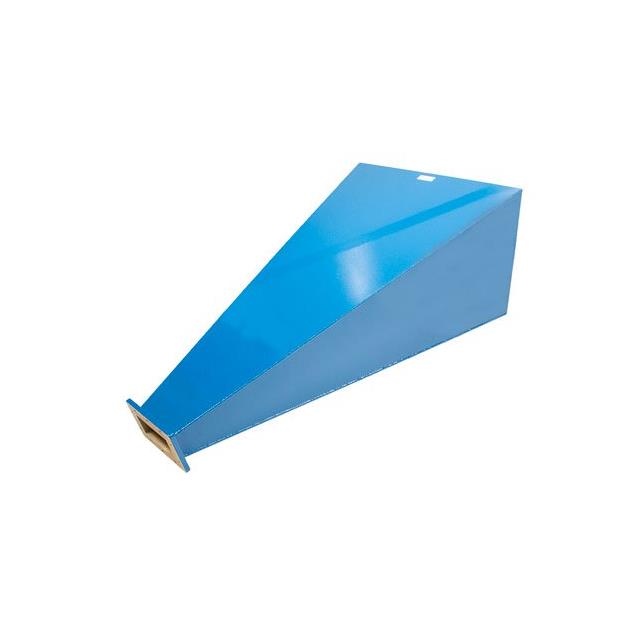

PE9864B-20 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is WR-430 Standard Gain Horn Antenn. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PE9864B-20
- Description：WR-430 Standard Gain Horn Antenn
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：General ISM
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.15GHz
- Frequency Range：1.7GHz ~ 2.6GHz
- Antenna Type：Horn
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：20dBi
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Waveguide Mount
- Height (Max)：40.250" (1022.35mm)
- Applications：General Purpose
- Power - Max：-
Antennas RF datasheet and documents for PE9864B-20
Antennas RF Overview
The Pasternack PE9864B-20 is a WR-430 standard gain horn antenna designed for the 1.7 GHz to 2.6 GHz frequency range. It provides a nominal gain of 20 dBi and features a UG-58/U flange interface. Constructed with a bulk packaging format, this directional antenna supports applications requiring precise signal transmission within the specified microwave band.
Antennas RF Feature Summary
- Standard gain horn design for consistent radiation patterns
- WR-430 waveguide compatibility for high-power handling
- UG-58/U flange mounting for secure mechanical integration
Antennas RF Applications
- Microwave test and measurement setups
- Satellite communication ground stations
- Radar system calibration
Antennas RF Procurement Notes
Verify the specific flange type and waveguide size against your existing infrastructure before ordering. Confirm that the operating frequency range aligns with your system requirements. Ensure proper handling procedures are followed due to the precision nature of waveguide components. Check for any specific environmental ratings if outdoor deployment is planned.
Antennas RF Selection Notes
Select this model when a fixed 20 dBi gain is required within the 1.7 to 2.6 GHz spectrum. The WR-430 size dictates physical space availability in the installation area. Consider the UG-58/U flange compatibility with adjacent equipment interfaces. Evaluate if the standard gain specification meets the link budget calculations for the intended application distance.
Antennas RF Part Context
This component belongs to Pasternack's directional antenna series, specifically focusing on standard gain horn designs. These antennas are engineered for reliable performance in microwave frequencies, offering a balance between directivity and bandwidth. The product line supports various waveguide sizes to accommodate different frequency bands and power levels.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official manufacturer resources for equivalent models or cross-reference specifications with other WR-430 standard gain horn antennas from different vendors.
