PEANFP1039

Antennas RF Overview

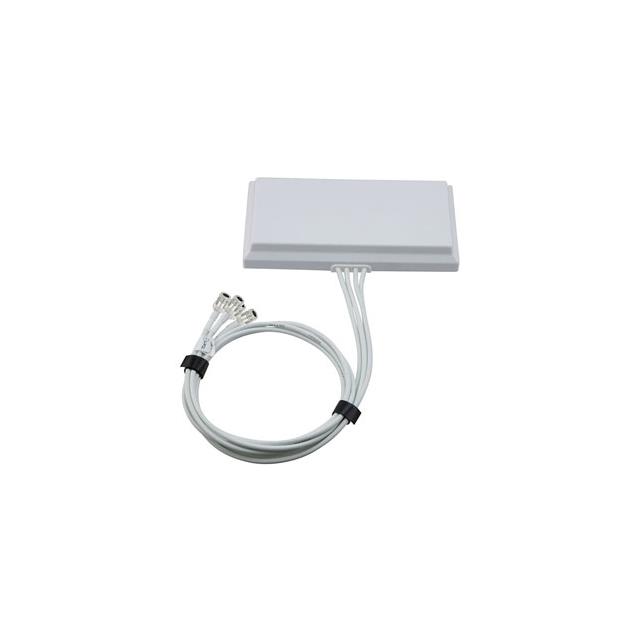

The PEANFP1039 is a wide-beam RF antenna manufactured by Pasternack, designed for dual-band operation within the 2.4 GHz and 5 GHz Wi-Fi frequency ranges. It supports IEEE 802.15.4, Bluetooth, and WiFi standards, covering frequencies from 2400 MHz to 2500 MHz and 5150 MHz to 7125 MHz. The component provides a gain of 6 dBi with a wide beamwidth configuration, centered around a frequency group of 4.762 GHz. This assembly is engineered for reliable signal transmission in wireless communication environments requiring broad coverage across multiple protocols.

Antennas RF Feature Summary

• Dual-band capability supporting both 2.4 GHz and 5 GHz wireless standards
• Wide beam design for enhanced spatial coverage
• Compatibility with 802.15.4, Bluetooth, and WiFi protocols

Antennas RF Applications

• Wi-Fi 6E wide beam connectivity systems
• Bluetooth low energy (BLE) network infrastructure
• IEEE 802.15.4 sensor network deployments

Antennas RF Procurement Notes

Verify the specific connector type and mounting hardware requirements against your system design before procurement. Confirm that the operating temperature range and environmental ratings meet your deployment conditions. Ensure compatibility with existing RF front-end components and impedance matching networks. Check for any regional regulatory compliance certifications required for the intended market. Validate frequency specifications against local spectrum allocation rules.

Antennas RF Selection Notes

Select this model when a wide beamwidth is required to cover larger areas without precise directional alignment. Choose the PEANFP1039 for applications integrating multiple wireless standards such as WiFi and Bluetooth simultaneously. Consider this antenna for indoor or outdoor installations where omnidirectional or broad coverage is prioritized over high-gain directionality. Ensure the physical dimensions fit the available space constraints.

Antennas RF Part Context

This component belongs to Pasternack's portfolio of RF antennas and microwave parts. It is categorized under wide-band antennas supporting modern wireless communication standards. The product line focuses on providing robust connectivity solutions for diverse industrial and commercial applications requiring reliable signal propagation across multiple frequency bands.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
