PEANFP1041

Antennas RF Overview

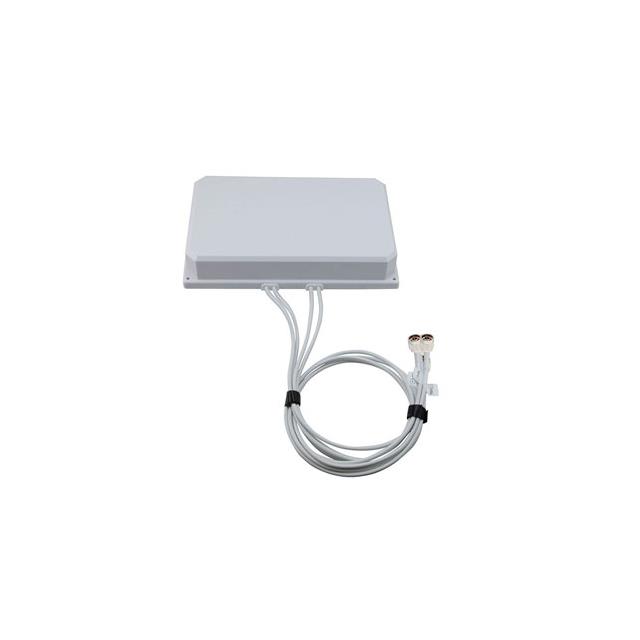

The PEANFP1041 is a multi-band panel antenna manufactured by Pasternack, designed for wireless communication applications. It supports three distinct frequency ranges: 2400-2500 MHz, 3300-3800 MHz, and 5150-7125 MHz. The device features an N-type male connector for secure cable attachment. Gain specifications vary across bands, providing 6 dBi for the lower frequencies and 6.5 dBi for the highest band. The maximum height of the unit is 1.97 inches. This pole-mount antenna is engineered to facilitate reliable signal transmission and reception in environments requiring broad spectrum coverage.

Antennas RF Feature Summary

• Supports multiple frequency bands including Bluetooth, Wi-Fi, and Zigbee
• Features N-type male connector interface
• Designed for pole mount installation

Antennas RF Applications

• Bluetooth connectivity systems
• Wi-Fi network infrastructure
• Zigbee wireless sensor networks

Antennas RF Procurement Notes

Verify that the specific frequency bands required for your application align with the supported ranges of 2400-2500 MHz, 3300-3800 MHz, and 5150-7125 MHz. Confirm that the N-type male connector matches your existing cabling infrastructure. Ensure the physical dimensions, particularly the 1.97-inch height, fit within your designated mounting space. Check local availability as distribution status may vary by region.

Antennas RF Selection Notes

Select this model when a single antenna solution is needed to cover diverse wireless protocols such as Bluetooth, Wi-Fi, and Zigbee simultaneously. Consider the gain requirements, noting the slight difference between the lower and upper frequency bands. Evaluate the mechanical constraints to ensure the pole-mount design suits your deployment environment. Verify compatibility with standard N-type connectors before finalizing the procurement decision.

Antennas RF Part Context

This component belongs to the Pasternack RF antenna product line, specifically categorized under multi-band panel antennas. It serves as a passive radiating element intended for integration into larger wireless communication systems. The part number identifies a specific configuration optimized for common industrial and consumer wireless standards, distinguishing it from single-band or specialized directional antennas within the manufacturer's catalog.
