PEANFP1078

Antennas RF Overview

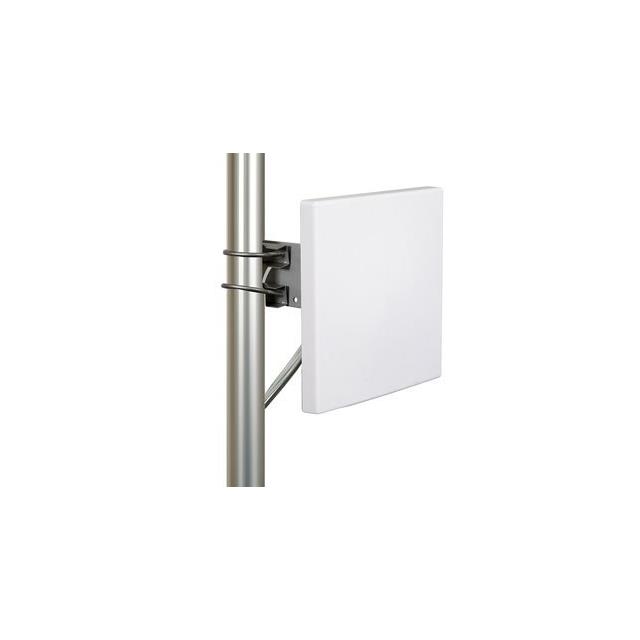

The PEANFP1078 is a WiFi 6e flat panel antenna designed for 2400 MHz to 7125 MHz operation. It features 4x4 MIMO configuration with 6 dBi gain in both horizontal and vertical polarizations. The unit utilizes an N-type female connector and employs mast mount installation. This directional antenna supports Wi-Fi, Bluetooth, IoT, and Zigbee protocols.

Antennas RF Feature Summary

• Supports WiFi 6e standards across specified frequency bands
• Integrates 4x4 MIMO technology for enhanced signal capacity
• Provides consistent 6 dBi gain in dual polarization orientations

Antennas RF Applications

• WiFi 6e network infrastructure deployment
• Bluetooth connectivity integration
• IoT device networking solutions
• Zigbee protocol implementation

Antennas RF Procurement Notes

Verify the specific model designation against official Pasternack documentation to confirm compatibility with required frequency bands and mounting hardware. Ensure that the N-type female connector interface aligns with existing cabling infrastructure before finalizing procurement decisions.

Antennas RF Selection Notes

Select this component when a directional solution supporting multiple wireless protocols is required. The 4x4 MIMO architecture offers increased throughput capabilities compared to single-input designs. Verify environmental suitability for the intended mast mount location.

Antennas RF Part Context

This model belongs to Pasternack's RF antenna portfolio, specifically targeting modern wireless communication standards. It addresses the need for high-performance directional antennas capable of handling dense network environments through multi-antenna configurations.

Antennas RF Replacement Considerations

Consult official manufacturer substitution lists for verified equivalent models. Generic replacements may not match the specific 4x4 MIMO performance characteristics or frequency range requirements.
