PEANGPS1009

Antennas RF Overview

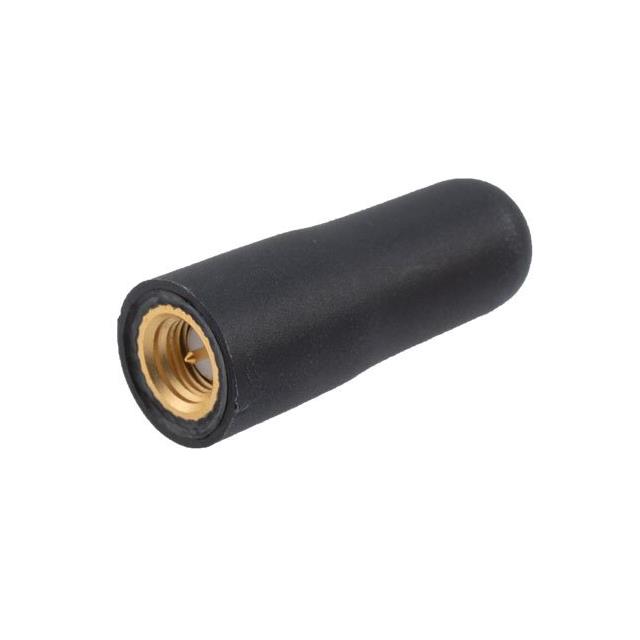

The PEANGPS1009 is a GPS active antenna manufactured by Pasternack. It operates within the frequency range of 1597 MHz to 1607 MHz. The device provides a gain of 10dBic and utilizes linear polarization. It features a small SMA mount interface for connectivity.

Antennas RF Feature Summary

• Active GPS reception capability
• Linear polarization design
• SMA mounting interface

Antennas RF Applications

• GPS navigation systems
• Positioning applications
• Telematics devices

Antennas RF Procurement Notes

Verify the specific SMA connector gender and pin configuration against system requirements. Confirm that the operating frequency range aligns with the target GPS L1 band. Ensure the power supply voltage matches the active element requirements before integration.

Antennas RF Selection Notes

Select this component when a compact, low-profile GPS solution is required. The SMA interface offers standard compatibility. Consider the 10dBic gain for general line-of-sight positioning needs where high-gain directional antennas are not feasible.

Antennas RF Part Context

This part belongs to Pasternack's antenna portfolio. It is designed for embedded GPS applications. The small form factor distinguishes it from larger external antennas. It serves as a direct interface for GPS receiver modules requiring an active antenna source.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing RF front-end designs if considering alternative manufacturers.
