PEANKIT1007

Antennas RF Overview

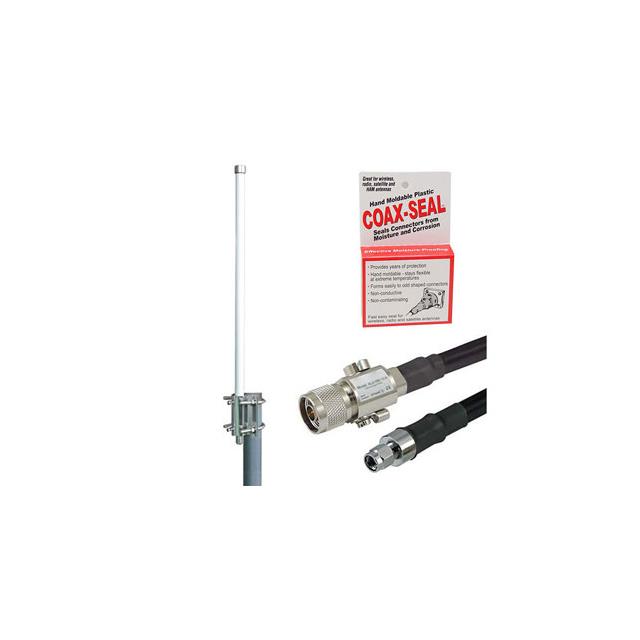

The Pasternack PEANKIT1007 is a Helium Hotspot Antenna Upgrade Kit designed for enhanced signal reception. It features a 6dBi gain, 900MHz omni-directional whip antenna operating within the 900MHz to 928MHz frequency range, including 914MHz ISM and LoRa LPWAN bands. The kit includes an N-type female bracket mount connector and a 20ft low-loss 400 cable with an N male to RP-SMA plug interface.

Antennas RF Feature Summary

• Includes a 6dBi gain omni-directional whip antenna optimized for 900MHz to 928MHz frequencies
• Comes with a 20ft low-loss 400 coaxial cable featuring N male to RP-SMA plug connectors
• Designed as a direct upgrade kit for Helium Hotspot devices to improve network connectivity

Antennas RF Applications

• Helium Hotspot antenna replacement or upgrade
• LoRa and LPWAN signal enhancement in the 900MHz ISM band
• General-purpose RF applications requiring 900MHz to 928MHz omni-directional coverage

Antennas RF Procurement Notes

Verify that the target device utilizes an RP-SMA female port compatible with the included N male to RP-SMA plug. Confirm the mounting location supports the N-type female bracket mount interface provided in the kit. Ensure the operational environment falls within the specified 900MHz to 928MHz frequency range for optimal performance. Check physical dimensions of the 20ft cable against installation constraints.

Antennas RF Selection Notes

Select this kit specifically for upgrading existing Helium Hotspot installations where standard antennas provide insufficient range. The 6dBi gain offers improved directional isolation compared to lower gain alternatives. The included cable length accommodates remote mounting scenarios. Consider the bracket mount requirement for stable outdoor or indoor positioning versus flexible whip-only options.

Antennas RF Part Context

Pasternack Enterprises specializes in RF components, cables, and connectors. This product belongs to their RF and Wireless category, targeting niche IoT and mesh networking hardware upgrades. It complements their broader portfolio of microwave parts and adapters by providing complete assembly solutions rather than individual discrete components.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available for this specific upgrade kit configuration.
