PEANKIT1021

$49.50

Description：Helium Hotspot HD Antenna Upgrad
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:39e559e8364e Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PEANKIT1021 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is Helium Hotspot HD Antenna Upgrad. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PEANKIT1021

Description：Helium Hotspot HD Antenna Upgrad
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：General ISM
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：892MHz
Frequency Range：824MHz ~ 960MHz
Antenna Type：Panel
Number of Bands：1
VSWR：1.8
Return Loss：-
Gain：9dBi
Features：Cable - 3.05m
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：1.000" (25.40mm)
Applications：IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M
Power - Max：10 W

Antennas RF datasheet and documents for PEANKIT1021

PEANKIT1021

Antennas RF Overview

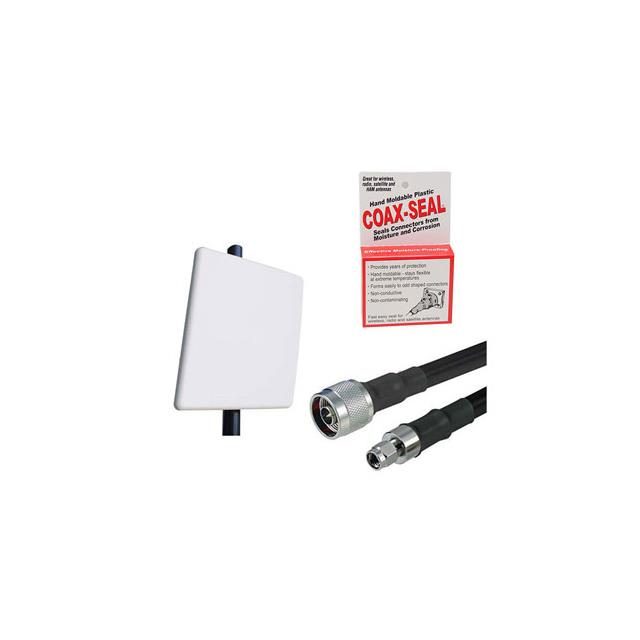

The PEANKIT1021 is a Helium Hotspot HD Antenna Upgrade Kit manufactured by Pasternack. It features a 9dBi gain 900MHz panel antenna designed for enhanced signal reception in LoRaWAN networks. The kit includes an N Male to RP-SMA plug connector and utilizes 10ft low loss 400 cable for efficient transmission. Rated for a maximum power of 10 W, it employs bracket mount installation with an N Type Female termination interface.

Antennas RF Feature Summary

Provides 9dBi directional gain at 900MHz for improved hotspot connectivity
Includes integrated 10ft low loss 400 cable assembly
Features N Male to RP-SMA plug termination for direct device connection

Antennas RF Applications

Helium Hotspot mining node upgrades
LoRaWAN network signal enhancement
Industrial IoT sensor gateway installations

Antennas RF Procurement Notes

Verify the specific revision of the PEANKIT1021 against your existing hotspot hardware model to ensure mechanical compatibility. Confirm that the included RP-SMA plug matches the port type on your device, as some variants may require adapters. Check the cable length specifications to ensure it meets your deployment layout requirements before finalizing the purchase order.

Antennas RF Selection Notes

Select this kit when upgrading standard antennas to improve range and reliability in dense LoRaWAN environments. The 9dBi gain offers superior performance compared to omnidirectional alternatives for fixed-point connections. Ensure the mounting location allows for clear line-of-sight to maximize the directional benefits provided by the panel design.

Antennas RF Part Context

This component belongs to Pasternack's specialized antenna upgrade series targeting the Helium network ecosystem. It serves as a targeted solution for miners seeking to increase their coverage area without replacing the entire hotspot unit. The product integrates high-performance RF components specifically tuned for the 900MHz ISM band used by these devices.
