PEANMOB1002-RTP

Antennas RF Overview

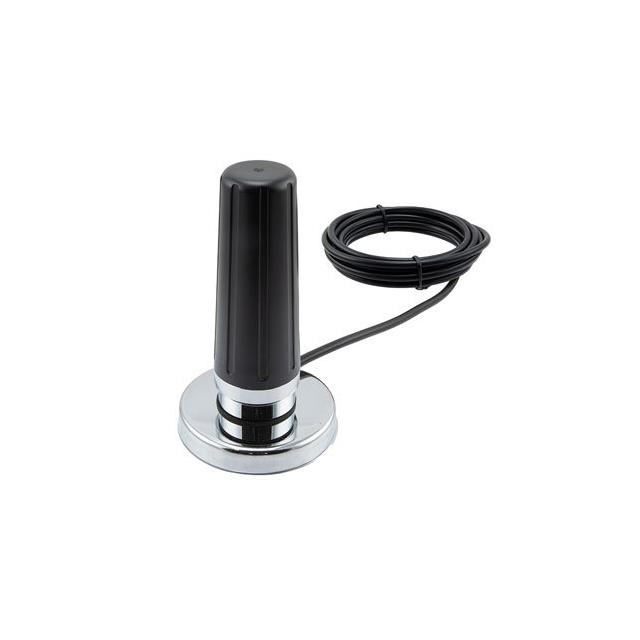

The PEANMOB1002-RTP is an omni-directional antenna manufactured by Pasternack. It operates within the frequency range of 136-174 MHz and provides a gain of 2.5 dBi. The unit features a magnetic NMO mount for installation and utilizes an RP-SMA female connector interface.

Antennas RF Feature Summary

• Omni-directional radiation pattern for uniform signal coverage
• Magnetic NMO mount for secure attachment to vehicle surfaces
• RP-SMA female connector for cable assembly integration

Antennas RF Applications

• Marine VHF radio communications
• Land mobile radio systems
• Public safety vehicle installations

Antennas RF Procurement Notes

Verify the specific connector type and mounting configuration against system requirements before ordering. Confirm that the operating frequency range aligns with the intended application spectrum. Ensure compatibility with existing RF cabling and hardware interfaces.

Antennas RF Selection Notes

Select this model when a compact, magnetically mounted solution is required for VHF band operations. Consider the 2.5 dBi gain level relative to other available options based on range requirements. Verify environmental durability specifications if used in harsh outdoor conditions.

Antennas RF Part Context

This component belongs to the Pasternack omni-directional antenna series designed for mobile applications. It shares the magnetic NMO mounting style with similar models in the product line but differs in connector type and specific frequency tuning parameters.

Antennas RF Replacement Considerations

Direct substitutes include the PEANMOB1001-SM and PEANMOB1005-SM. These alternatives share the same frequency range and gain but utilize different connector types such as SMA male instead of RP-SMA female.
