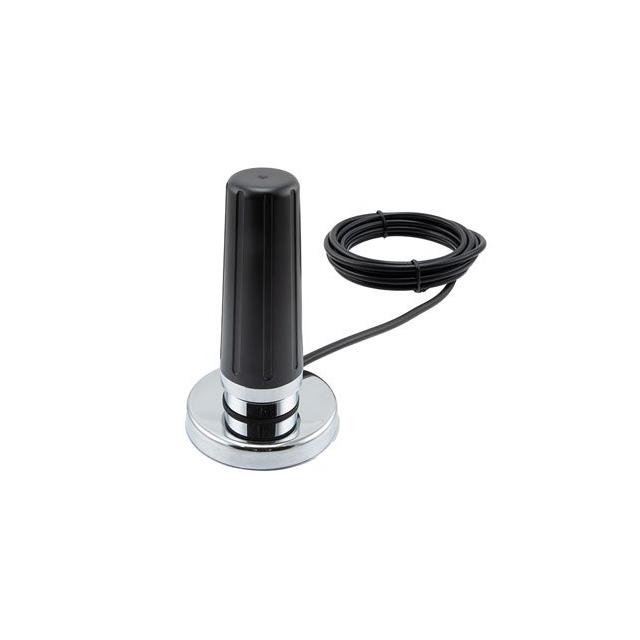

PEANMOB1002-SM is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 617-7125 MHz, 2-5 dBi Gain, Omni. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PEANMOB1002-SM
- Description：617-7125 MHz, 2-5 dBi Gain, Omni
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：3.871GHz
- Frequency Range：617MHz ~ 7.125GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：5dBi
- Features：Cable - 3.05m
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Magnetic
- Height (Max)：4.000" (101.60mm)
- Applications：Bluetooth, IoT, Wi-Fi, Zigbee™
- Power - Max：100 W
Antennas RF datasheet and documents for PEANMOB1002-SM
Antennas RF Overview
The PEANMOB1002-SM is an omni-directional RF antenna manufactured by Pasternack. It operates within the frequency range of 617-7125 MHz and provides a gain of 2.5 dBi. The unit features a magnetic NMO mount for installation flexibility and utilizes an SMA male connector for signal interface.
Antennas RF Feature Summary
- Omni-directional radiation pattern for broad coverage
- Magnetic NMO mount for secure attachment
- SMA male connector interface
Antennas RF Applications
- RF communication systems
- General-purpose RF applications
- Signal transmission setups
Antennas RF Procurement Notes
Verify the specific datasheet for the PEANMOB1002-SM to confirm current availability status and regional distribution restrictions. Ensure compatibility with existing SMA male interfaces and NMO mounting requirements before finalizing procurement decisions.
Antennas RF Selection Notes
Select this model when a wide frequency range covering sub-GHz to microwave bands is required. The magnetic NMO mount offers a non-permanent installation solution suitable for mobile or temporary setups requiring reliable signal transmission in the specified spectrum.
Antennas RF Part Context
This component belongs to the Pasternack omni-directional antennas series. It is part of a broader portfolio of RF, microwave, and millimeter wave products supplied by Pasternack Enterprises, Inc., an ISO certified manufacturer specializing in connectivity solutions.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official Pasternack resources for cross-reference data if alternative components are necessary.
