PEANMOB1007-SM

Antennas RF Overview

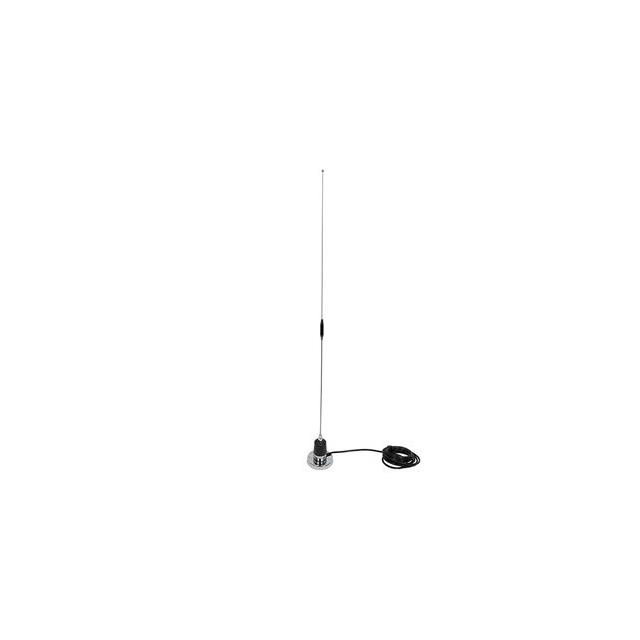

The PEANMOB1007-SM is an omnidirectional RF antenna manufactured by Pasternack, designed for operation within the 144-430 MHz frequency range. It provides a gain of 5.5 dBi and features an SMA male connector interface. The unit utilizes a magnetic NMO mount for installation and is constructed as a general-purpose whip antenna.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for consistent signal coverage
• Integrated magnetic NMO mounting base for secure attachment
• SMA male connector interface for direct cable connection

Antennas RF Applications

• Mobile radio communications
• Marine VHF/UHF systems
• General purpose wireless transmission

Antennas RF Procurement Notes

Verify the specific connector type matches the system requirements before purchase. Confirm that the magnetic NMO mount is compatible with the intended vehicle or surface. Check RoHS compliance documentation if environmental regulations apply to the deployment environment.

Antennas RF Selection Notes

Select this model when a 144-430 MHz operational range is required. Ensure the host equipment supports the SMA male interface. Consider the magnetic mount stability for high-vibration environments compared to fixed mechanical mounts.

Antennas RF Part Context

This component belongs to the Pasternack RF Antenna product line. It is categorized as a general-purpose whip antenna. The series includes variants with different connectors such as N-female models.

Antennas RF Replacement Considerations

The PEANMOB1007-NF serves as a substitute option offering identical performance characteristics but utilizing an N-female connector instead of the SMA male interface found in the PEANMOB1007-SM.
