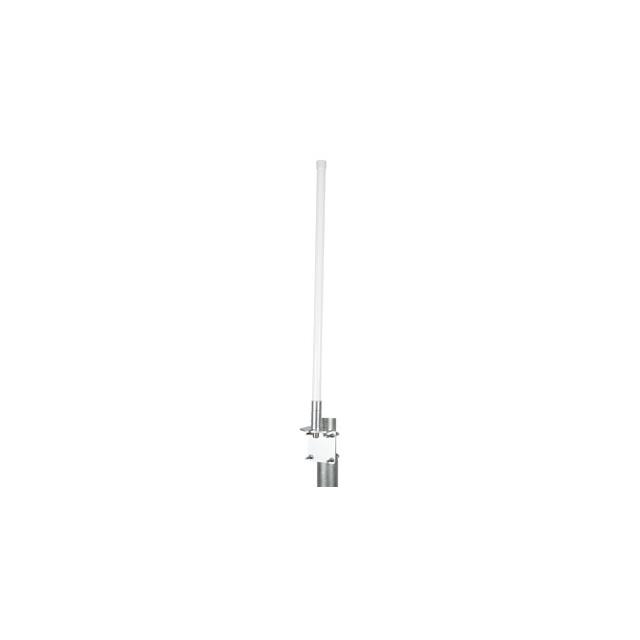

PEANOM1051 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is Antenna Omni 433 MHz 6 dBi N Fem. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PEANOM1051
- Description：Antenna Omni 433 MHz 6 dBi N Fem
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：General ISM
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：433MHz
- Frequency Range：423MHz ~ 443MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：8dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：23.600" (599.44mm)
- Applications：General Purpose
- Power - Max：100 W
Antennas RF datasheet and documents for PEANOM1051
Antennas RF Overview
The PEANOM1051 is a collinear omnidirectional antenna manufactured by Pasternack, designed for outdoor cellular network applications. It operates within the 423 to 443 MHz frequency range, supporting 5G and LTE standards. The unit features an N Female connector and offers a gain of 6 dBi. It is rated for a maximum input power of 100 Watts. The antenna utilizes a straight whip design with bracket mounting capabilities.
Antennas RF Feature Summary
- Collinear omnidirectional radiation pattern optimized for cellular coverage
- Robust outdoor construction suitable for harsh environmental conditions
- Straight whip form factor facilitates easy bracket installation
Antennas RF Applications
- Cellular network infrastructure deployment
- 5G and LTE signal distribution systems
- Outdoor wireless communication base stations
Antennas RF Procurement Notes
Verify the specific datasheet version for the PEANOM1051 to confirm mechanical dimensions and connector tolerances. Ensure compatibility with existing N Female interfaces in the RF chain. Cross-reference regulatory compliance certifications required for the target deployment region before finalizing procurement orders.
Antennas RF Selection Notes
Select this model when a 6 dBi gain omnidirectional solution is required for the 423-443 MHz band. The N Female connector dictates interface compatibility. Consider the 100 Watt power rating against expected transmitter output levels. Evaluate the straight whip design against spatial constraints at the installation site.
Antennas RF Part Context
This component belongs to Pasternack's Omni-Directional Antennas series. The manufacturer specializes in RF and microwave components, including amplifiers, switches, and cable assemblies. The PEANOM1051 represents their offering in high-performance outdoor cellular antennas.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users must verify electrical and mechanical equivalence if considering alternative vendors or models.
