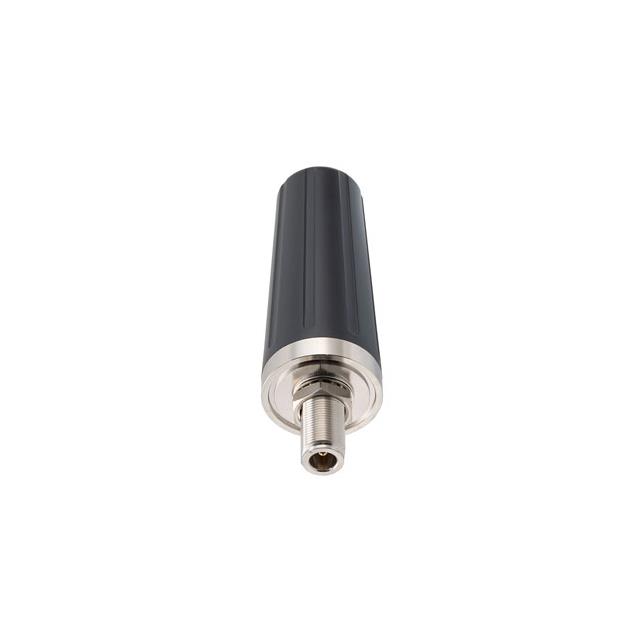

PEANOM1058

$57.45

Description：617 to 7125 MHz Wi-Fi 6E Omni An
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:d4450dd4405f Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PEANOM1058 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 617 to 7125 MHz Wi-Fi 6E Omni An. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PEANOM1058

Description：617 to 7125 MHz Wi-Fi 6E Omni An
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：3.871GHz
Frequency Range：617MHz ~ 7.125GHz
Antenna Type：Dome
Number of Bands：1
VSWR：2.5
Return Loss：-
Gain：5dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：5.160" (131.06mm)
Applications：Bluetooth, Wi-Fi, Zigbee™
Power - Max：100 W

Antennas RF datasheet and documents for PEANOM1058

PEANOM1058

Antennas RF Overview

The PEANOM1058 is an omni-directional standard series antenna designed for cellular networks, supporting frequencies from 617 to 7125 MHz. It features a dual-band configuration with a nominal gain of 2-5 dBi and includes an N Type Female connector. The unit weighs 226.796 g and is packaged in bulk.

Antennas RF Feature Summary

Omni-directional radiation pattern suitable for broad coverage applications
Dual-band frequency support spanning 617 to 7125 MHz
Standard series construction with integrated mounting bracket

Antennas RF Applications

Cellular network infrastructure
Wi-Fi 6E deployments
General-purpose RF communication systems

Antennas RF Procurement Notes

Verify the specific datasheet version for the PEANOM1058 to confirm current manufacturing status and compliance certifications. Ensure the N Type Female interface matches system requirements. Check distributor availability as stock levels may vary by region.

Antennas RF Selection Notes

Select this model when wideband coverage from 617 to 7125 MHz is required. The 2-5 dBi gain offers moderate signal amplification. Confirm that the N Type Female connector type aligns with existing cable assemblies and mounting hardware specifications.

Antennas RF Part Context

This component belongs to Pasternack's Omni-Directional Antennas subcategory. It is part of the standard series line, which focuses on reliable signal transmission for general-purpose RF applications and communication systems.
