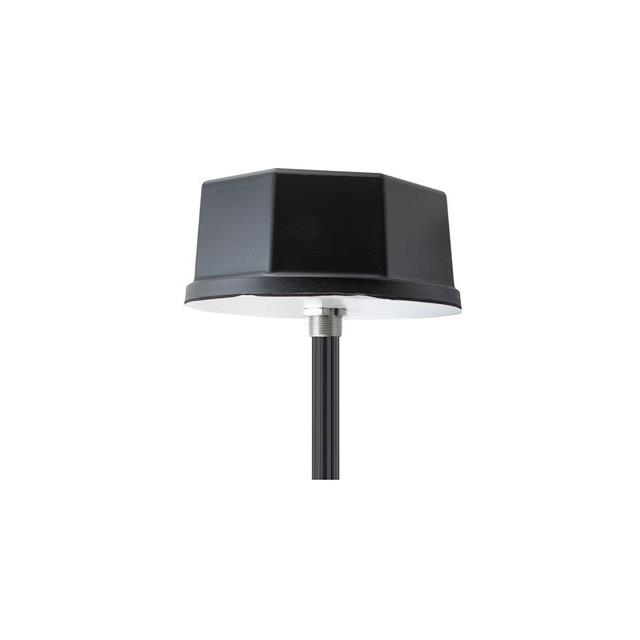

PEANOM1110 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2 Cellular, 2 Wi-Fi, 1 GPS Combi. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PEANOM1110
- Description：2 Cellular, 2 Wi-Fi, 1 GPS Combi
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：General ISM
- Frequency Group：Wide Band
- Frequency (Center/Band)：788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz
- Frequency Range：617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz
- Antenna Type：Module
- Number of Bands：6
- VSWR：2
- Return Loss：-
- Gain：4dBi, 26dBi, 6dBi, 5dBi, 7dBi, 8dBi
- Features：Cable - 5.182m, LNA
- Termination：N Type Male, RP-SMA Male, SMA Male
- Ingress Protection：IP69K
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：3.150" (80.01mm)
- Applications：General Purpose
- Power - Max：10 W
Antennas RF datasheet and documents for PEANOM1110
Antennas RF Overview
The Pasternack PEANOM1110 is a combination antenna designed for multi-band RF applications. It integrates two cellular bands, two Wi-Fi bands, and one GPS band into a single unit. The device utilizes N-type and RP-SMA connectors to facilitate signal transmission. This configuration supports diverse communication requirements within a compact form factor.
Antennas RF Feature Summary
- Integrates dual cellular, dual Wi-Fi, and single GPS frequency bands
- Utilizes N-type and RP-SMA connector interfaces for versatile connectivity
- Designed as a 5-in-1 combination solution for public safety and mobile base stations
Antennas RF Applications
- Public safety communications systems
- Emergency services vehicle installations
- Mobile base station deployments
- Autonomous vehicle navigation and communication
- Fleet management tracking systems
Antennas RF Procurement Notes
Verify the specific connector type required for your system integration, as this model includes both N-type and RP-SMA interfaces. Confirm that the combined frequency coverage aligns with local regulatory standards for cellular, Wi-Fi, and GPS operations. Ensure mechanical mounting constraints are compatible with the antenna's physical dimensions before finalizing procurement decisions.
Antennas RF Selection Notes
Select this component when a single antenna solution is required to handle multiple distinct frequency bands simultaneously. It is suitable for environments where space is limited but multiple wireless protocols must be supported. Consider the connector types available on the host equipment to ensure proper interface matching without additional adapters.
Antennas RF Part Context
This model belongs to Pasternack's portfolio of RF antennas and combination solutions. It is part of a series offering integrated multi-band capabilities for complex communication needs. The product line focuses on providing reliable signal transmission for specialized industrial and commercial applications requiring consolidated antenna hardware.
Antennas RF Replacement Considerations
No direct substitute part numbers are publicly confirmed in the provided documentation. Evaluate other Pasternack combination antennas if specific band configurations differ. Verify compatibility with existing mounting hardware and connector specifications when considering alternative models from the same manufacturer.
