PEANRBD1002 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 1.8 dBi, UHF Rubber Duck Antenna. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PEANRBD1002
- Description：1.8 dBi, UHF Rubber Duck Antenna
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：General ISM
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：435MHz
- Frequency Range：400MHz ~ 470MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：1.8dBi
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：3.700" (93.98mm)
- Applications：General Purpose
- Power - Max：10 W
Antennas RF datasheet and documents for PEANRBD1002
Antennas RF Overview

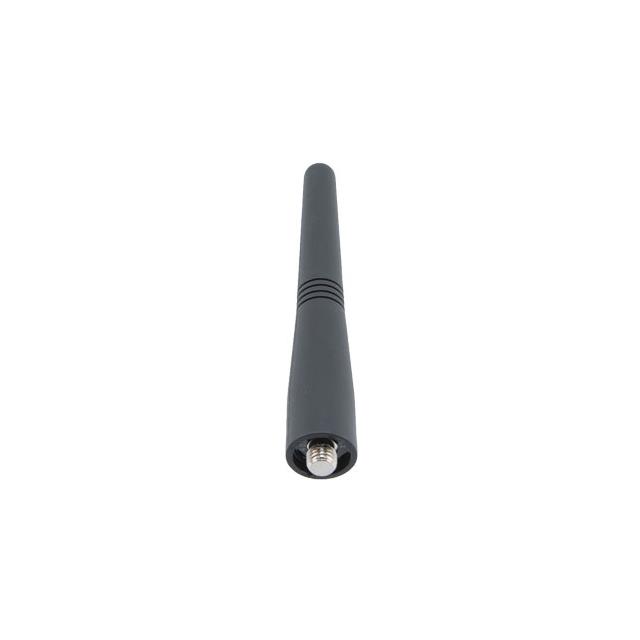

The Pasternack PEANRBD1002 is an omnidirectional rubber duck antenna designed for UHF applications. It operates within a frequency range of 400-470 MHz and provides a gain of 1.8 dBi. The component features a MOTO connector interface. Physical dimensions include a height of 0.5 inches, a width of 0.5 inches, and a length of 3.54 inches. The antenna offers 360-degree coverage.
Antennas RF Feature Summary
- Omnidirectional radiation pattern providing 360-degree coverage
- Rubber duck construction suitable for compact installations
- Integrated MOTO connector for direct equipment attachment
Antennas RF Applications
- UHF communication systems
- VHF/UHF mobile radio setups
- General-purpose RF signal transmission
Antennas RF Procurement Notes
Verify the specific connector type compatibility with existing equipment before purchase. Confirm that the operating frequency range aligns with system requirements. Check regional availability as distribution may vary by location. Ensure physical space constraints accommodate the specified dimensions. Validate environmental ratings if outdoor usage is intended.
Antennas RF Selection Notes
Choose this model when a low-profile omnidirectional solution is required for UHF bands. Consider the MOTO connector requirement for interface compatibility. Evaluate the 1.8 dBi gain against system link budget needs. Assess the physical size constraints relative to installation sites. Compare against other rubber duck antennas for specific performance criteria.
Antennas RF Part Context
This component belongs to Pasternack's Omni-Directional Antennas series. It is part of a broader portfolio of RF cable assemblies and antennas designed for reliable signal transmission. Pasternack specializes in microwave parts, RF components, and custom coaxial solutions for various communication systems.
Antennas RF Replacement Considerations
Check for exact MOTO connector match. Verify identical 400-470 MHz frequency range. Ensure comparable 1.8 dBi gain specifications. Confirm similar physical dimensions for fitment. Review manufacturer datasheets for electrical equivalence.
