PEANRBD1017

Antennas RF Overview

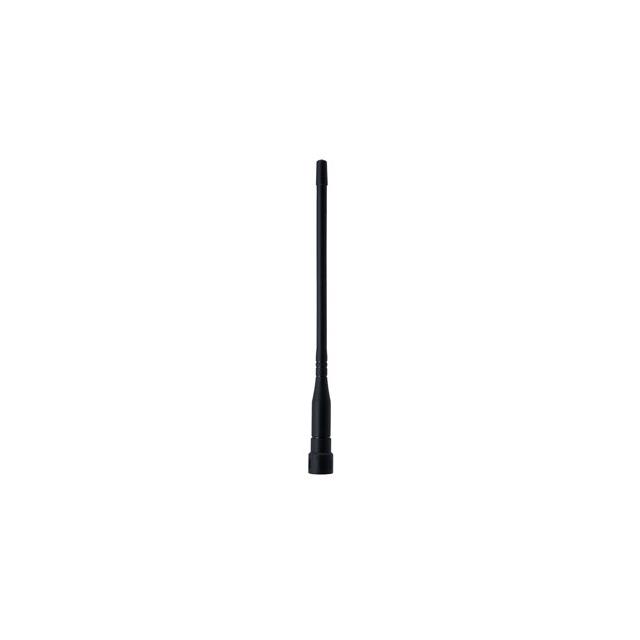

The Pasternack PEANRBD1017 is an 868 MHz rubber duck antenna featuring a 3.5 dBi gain specification. It utilizes an SMA male connector interface for secure attachment to compatible RF equipment. The unit is constructed with a black TPE radome, measuring 6.68 inches in overall length and 0.50 inches in width. The component weighs 0.022 lbs and operates as a single-band antenna designed for specific frequency applications.

Antennas RF Feature Summary

• Single-band operation optimized for the 868 MHz frequency range
• Integrated rubber duck form factor with black TPE radome construction
• SMA male connector interface for direct equipment attachment

Antennas RF Applications

• RF communication systems requiring 868 MHz connectivity
• Industrial wireless sensor networks
• ISM band data transmission devices

Antennas RF Procurement Notes

Verify the exact model number against official Pasternack documentation to ensure compatibility with your system requirements. Confirm that the SMA male connector matches your device's port type. Check the specified lead time of 13 weeks for availability planning. Ensure the operating frequency aligns with your regulatory domain and application needs before finalizing procurement.

Antennas RF Selection Notes

Select this antenna when a compact, single-band solution is required for 868 MHz operations. The rubber duck design offers flexibility and ease of installation compared to rigid alternatives. Consider the physical dimensions and weight constraints of your deployment environment. Ensure the gain specification meets the link budget requirements for your specific distance and interference conditions.

Antennas RF Part Context

This component belongs to Pasternack's portfolio of RF antennas and microwave parts. It complements their broader selection of cable assemblies, connectors, and attenuators. The product line targets users needing reliable RF components for various frequency ranges. Pasternack provides these items to support diverse electronic and communication system designs.

Antennas RF Replacement Considerations

Consult official Pasternack documentation for verified substitute part numbers. Cross-reference specifications such as frequency, gain, and connector type when evaluating alternatives. Ensure any replacement maintains compatibility with existing system interfaces and performance requirements.
