PEANRBD1047

$10.42

Description：2.4 GHz to 2.5 GHz Concave Shape
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:dfe0b839cf2b Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PEANRBD1047 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2.4 GHz to 2.5 GHz Concave Shape. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PEANRBD1047

Description：2.4 GHz to 2.5 GHz Concave Shape
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：Cellular, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：3dBi
Features：-
Termination：RP-SMA Male
Ingress Protection：IPX7
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：5.870" (149.10mm)
Applications：5G, 802.11b/g/n, ISM, WLAN
Power - Max：10 W

Antennas RF datasheet and documents for PEANRBD1047

PEANRBD1047

Antennas RF Overview

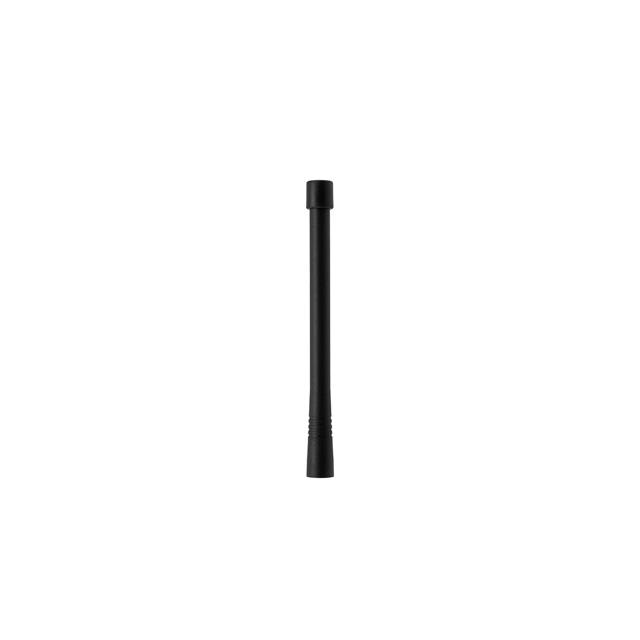

The Pasternack PEANRBD1047 is a single-band dipole antenna designed for the 2.4 GHz to 2.5 GHz frequency range, specifically targeting ISM and WLAN applications including 802.11b/g/n standards. It features a concave rubber duck shape with an RPSMA male connector and provides a gain of 3 dBi. The unit offers IPX7 ingress protection and supports high power handling within a sturdy design.

Antennas RF Feature Summary

Concave rubber duck dipole structure
IPX7 environmental protection rating
High power handling capacity

Antennas RF Applications

WLAN networks
ISM band operations
802.11b/g/n systems

Antennas RF Procurement Notes

Verify the specific connector type and physical dimensions against system requirements before ordering. Confirm that the RPSMA male interface matches the host device port. Ensure the operating frequency aligns with the intended application spectrum. Check environmental ratings if outdoor exposure is anticipated.

Antennas RF Selection Notes

Select this model for compact wireless installations requiring omnidirectional coverage in the 2.4 GHz band. The IPX7 rating suits environments needing moisture resistance. Consider the RPSMA connector compatibility when integrating with existing RF infrastructure.

Antennas RF Part Context

This component belongs to Pasternack's portfolio of RF antennas and microwave products. Pasternack operates as a global supplier of RF components, supporting international distribution networks. The company maintains ISO 9001:2008 certification for manufacturing quality.
