PEC05SAFN

Headers, Male Pins Overview

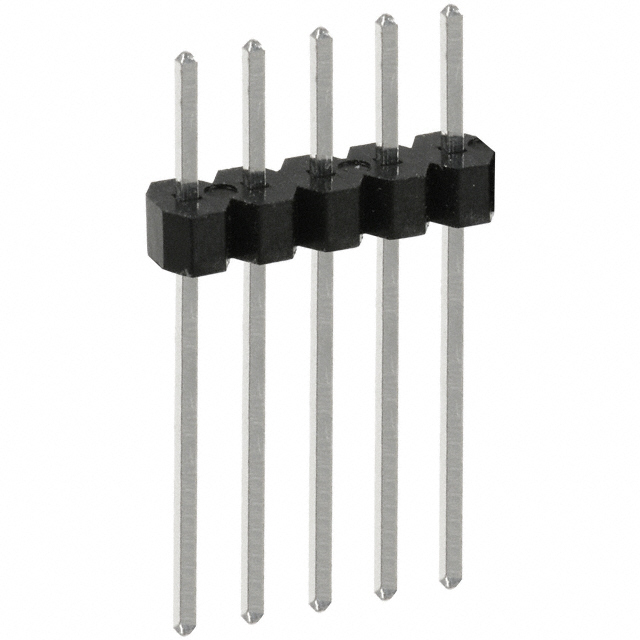

The PEC05SAFN is a male breakaway header manufactured by Sullins Connector Solutions. It features 5 positions arranged in a single row with a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, the connector utilizes phosphor bronze contacts with tin plating on both mating and tail sections. The insulation material is polybutylene terephthalate (PBT), rated UL94 V-0, supporting an operating temperature range of -65°C to 125°C. The assembly includes a push-pull fastening style and provides a total contact length of 0.950 inches.

Headers, Male Pins Feature Summary

• Breakaway design allows for easy separation into individual rows during assembly
• Push-pull fastening mechanism secures mating connections
• Through-hole termination ensures stable board attachment

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board interfaces
• General electronic equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific pin count and row configuration against the target PCB footprint before ordering. Confirm that the tin-plated contact finish meets the environmental requirements of the application. Ensure the through-hole pad dimensions align with the component's tail specifications to guarantee reliable soldering integrity.

Headers, Male Pins Selection Notes

Select this part when a low-profile, single-row male header is required for standard 2.54mm pitch applications. The breakaway feature offers flexibility in manufacturing by allowing custom row lengths. Verify that the 3A current rating and PBT insulation are suitable for the thermal and electrical loads of the system.

Headers, Male Pins Part Context

This component belongs to the PEC series of male breakaway headers from Sullins Connector Solutions. These connectors are designed for high-density applications where space efficiency and reliable signal transmission are critical. The series supports various pin counts and configurations to accommodate diverse board layout needs.

Headers, Male Pins Replacement Considerations

Cross-reference with other single-row, 5-position, 2.54mm pitch male headers from manufacturers such as Samtec or Molex. Ensure identical mechanical dimensions, contact plating type, and mounting style compatibility before substitution.
