PEC24SFBN

Headers, Male Pins Overview

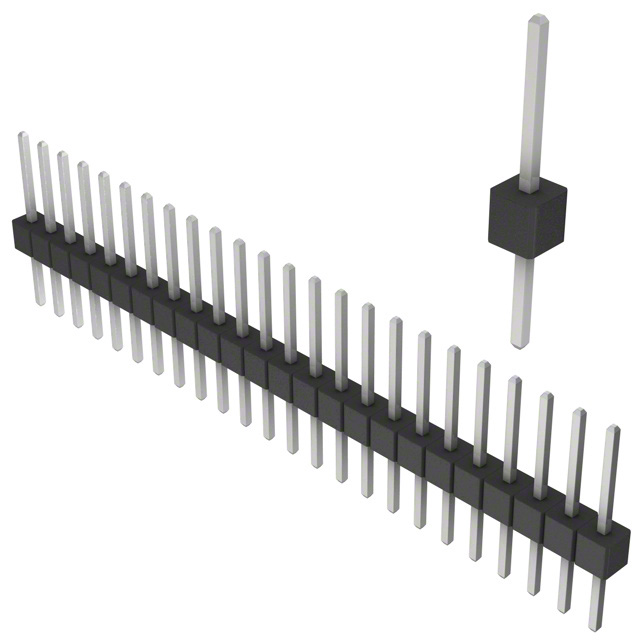

PEC24SFBN is a rectangular header connector from Sullins Connector Solutions, designed for through-hole mounting. It features 24 positions arranged in a single row with a 0.100 inch (2.54mm) pitch. The connector utilizes male pin contacts with a tin finish and phosphor bronze material. Constructed with black polybutylene terephthalate insulation, it supports an operating temperature range of -65°C to 125°C and carries a UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Single-row unshrouded header design with breakaway capability
• Through-hole termination using solder process
• Male pin contacts with tin plating on phosphor bronze substrate
• Push-pull fastening type for secure board attachment

Headers, Male Pins Applications

• General-purpose board-to-board interconnection
• Industrial control system circuit boards
• Consumer electronics internal wiring harnesses

Headers, Male Pins Procurement Notes

Verify the specific suffix 'BN' against the manufacturer's official datasheet to confirm contact finish and insulation material specifications. Ensure the required current rating aligns with the component's thermal characteristics. Confirm that the through-hole mounting style matches the target PCB layout requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, unshrouded header is required for standard 0.100 inch spacing applications. The tin-plated contacts offer cost-effective conductivity suitable for non-corrosive environments. Consider the breakaway feature if panelization or manual separation of multiple units is necessary during assembly processes.

Headers, Male Pins Part Context

This part belongs to the PEC series of rectangular connectors manufactured by Sullins Connector Solutions. The series is characterized by high-quality edge cards and headers designed for reliable electronic interconnections. The PEC line typically offers various configurations including straight and right-angle options with different row counts and pitch standards.

Headers, Male Pins Replacement Considerations

Cross-reference with other Sullins parts such as PEC24SFCN or PEC24SFDN for alternative contact finishes or insulation materials. Verify that any substitute maintains the same 0.100 inch pitch and single-row configuration to ensure mechanical compatibility.
