PEC34SAFN

Headers, Male Pins Overview

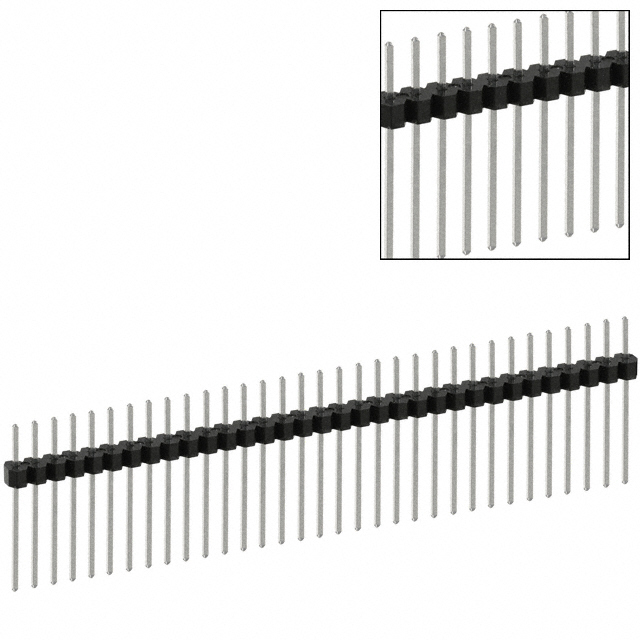

The PEC34SAFN is a vertical male header connector manufactured by Sullins Connector Solutions. It features 34 positions with a single row and a 0.100-inch (2.54mm) pitch. Designed for through-hole termination, this unshrouded breakaway connector utilizes phosphor bronze contacts with tin plating. The housing is constructed from PBT material rated UL94 V-0 in black. It supports a current rating of 3A and operates within a temperature range of -65°C to 125°C.

Headers, Male Pins Feature Summary

• Vertical orientation with breakaway design for flexible board separation
• Through-hole mounting for secure PCB attachment
• Tin-plated phosphor bronze contacts for reliable conductivity

Headers, Male Pins Applications

• General electronic interconnects
• Board-to-board connections
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify component availability as the part status may be discontinued or limited. Confirm that the specific suffix matches the required pin count and orientation. Ensure compatibility with mating female connectors regarding pitch and contact type. Check for RoHS compliance documentation if environmental regulations apply to the final assembly.

Headers, Male Pins Selection Notes

Select this component when a single-row, 34-position vertical header is required. Ensure the application environment stays within the specified -65°C to 125°C operating range. Verify that the 3A current rating meets circuit requirements. Consider the breakaway feature if post-assembly separation of the connector strip is necessary.

Headers, Male Pins Part Context

This part belongs to the PEC series of male headers from Sullins Connector Solutions. It is designed for standard rectangular interconnect applications. The series offers various configurations in terms of position count and contact finish options to suit different manufacturing needs.

Headers, Male Pins Replacement Considerations

Compatible mating parts include female headers such as S7067-ND and S7032-ND. Ensure substitute components match the 2.54mm pitch and 34-position requirement.
