PEC34SFBN

Headers, Male Pins Overview

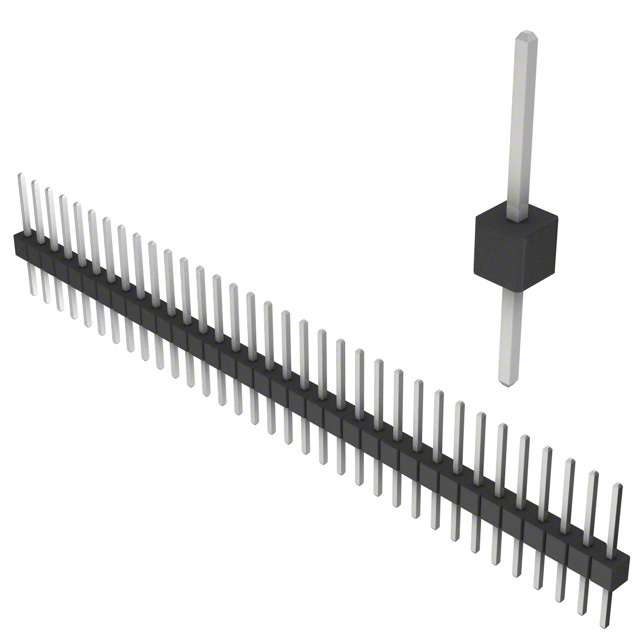

The PEC34SFBN is a rectangular header connector manufactured by Sullins Connector Solutions. It features 34 positions arranged in a single row with a 0.100 inch (2.54mm) pitch. Designed for surface mount termination, this unshrouded male pin header utilizes square contact shapes and tin plating on the mating interface. The housing is constructed from black plastic material rated UL94 V-0, supporting a maximum current rating of 3A.

Headers, Male Pins Feature Summary

• Surface mount design for automated PCB assembly
• Unshrouded male pin configuration for versatile mating options
• Tin-plated contacts for reliable signal transmission

Headers, Male Pins Applications

• General electronic circuit interconnections
• Board-to-board signal routing
• Industrial control module interfaces

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized Sullins Connector Solutions distributors. Confirm RoHS compliance status against specific batch documentation. Ensure storage conditions maintain integrity of the tin-plated contacts prior to soldering. Cross-reference datasheet revisions to confirm mechanical dimensions match design requirements.

Headers, Male Pins Selection Notes

Select this component for applications requiring surface mount male headers with standard 2.54mm spacing. Consider the unshrouded design for flexible mating partner selection. Evaluate thermal profiles during reflow soldering to protect the polyamide insulation. Verify that the 3A current rating meets system electrical demands.

Headers, Male Pins Part Context

This part belongs to the PEC series of rectangular connectors from Sullins Connector Solutions. The series offers various configurations including different row counts and termination styles. The PEC34SFBN specifically addresses needs for compact, high-density surface mount connections in space-constrained electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 34-position, single-row, 2.54mm pitch surface mount headers from Sullins or equivalent manufacturers. Ensure identical contact plating and insulation material ratings when sourcing alternatives.
