PEMB16,115

Overview

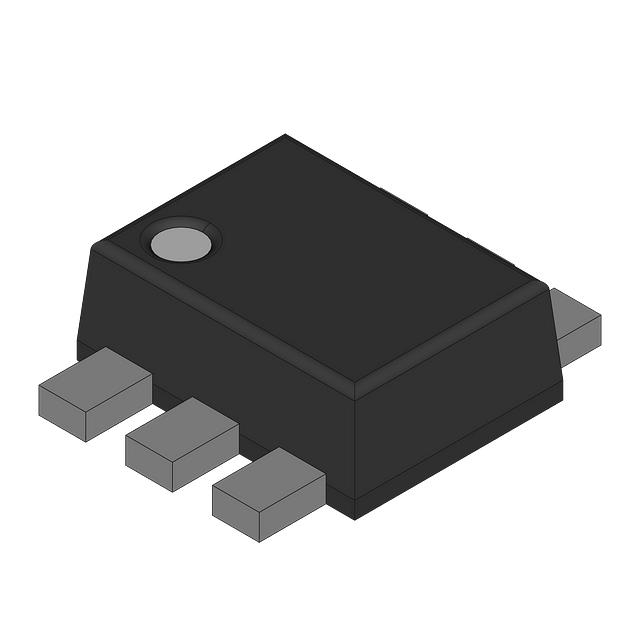

The PEMB16,115 is a digital transistor from Nexperia featuring an NPN resistor-equipped transistor and a PNP general-purpose transistor integrated into a single SOT363 (SC-88) plastic package. This dual-transistor configuration provides a total power dissipation of 300 mW with a maximum collector current of 100 mA and a collector-emitter voltage rating of 50 V. The component includes typical base resistors of 47 kΩ for the NPN section and 22 kΩ for the PNP section, designed to simplify circuit layouts by replacing two separate SOT323 devices.

Feature Summary

• Integrates an NPN resistor-equipped transistor and a PNP general-purpose transistor within a single compact package
• Reduces printed circuit board area requirements by consolidating two discrete components into one surface-mount device
• Offers high DC current gain characteristics suitable for switching applications in portable equipment

Applications

• Power management switches for portable electronic equipment such as cellular phones and CD players
• Switching circuits for voltage regulators
• General-purpose logic level shifting and signal buffering in space-constrained designs

Procurement Notes

Verify the specific suffix 115 against the manufacturer's official datasheet to confirm tape-and-reel packaging specifications and quantity per reel. Ensure that the ordering code matches the exact electrical parameters required for the target application, particularly the resistor values associated with each transistor channel.

Selection Notes

Select this component when design constraints require minimizing PCB footprint by combining complementary NPN and PNP functions. It serves as a direct replacement for discrete SOT323 pairs, offering reduced pick-and-place costs while maintaining standard switching performance levels for low-power digital control tasks.

Part Context

This part belongs to Nexperia's portfolio of resistor-equipped transistors designed for efficient space utilization. The SOT363 package allows for higher density mounting compared to individual small-outline packages, supporting modern miniaturization trends in consumer electronics and industrial control systems requiring reliable bipolar switching elements.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Designers should consult official Nexperia cross-reference tools or distributor databases for verified equivalents before implementation.
