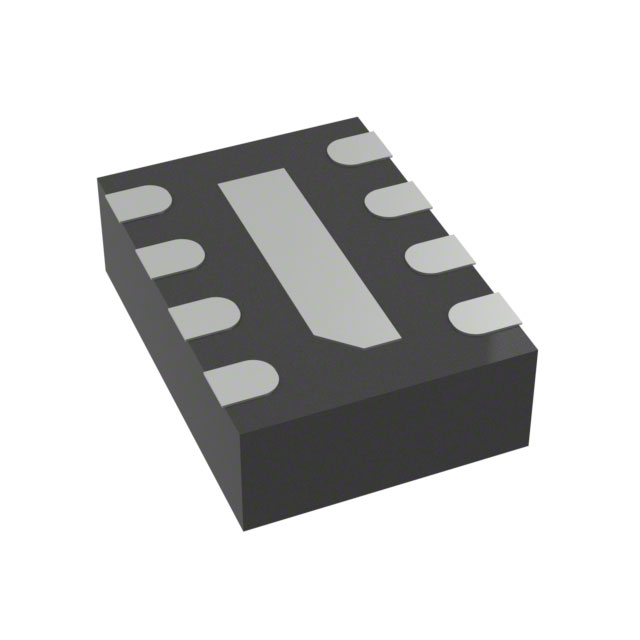

PEMI4QFN/RT,132

$0.09

Description：FILTER RC(PI) 100 OHMS ESD SMD
Series：PEMIxQFN
Mfr：NXP USA Inc.
Package：Bulk

SKU:26e7add6a161 Category: EMI/RFI Filters (LC, RC Networks) Brand: NXP USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER RC(PI) 100 OHMS ESD SMD
Series：PEMIxQFN
Mfr：NXP USA Inc.
Package：Bulk
Type：Low Pass
Filter Order：2nd
Technology：RC (Pi)
Number of Channels：4
Center / Cutoff Frequency：-
Attenuation Value：27dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms)：100
Values：R = 100Ohms, C = 23pF (Total)
ESD Protection：Yes
Operating Temperature：-40°C ~ 85°C
Applications：LAN, PCS, WAN
Voltage - Rated：-
Mounting Type：Surface Mount
Package / Case：8-XFDFN
Size / Dimension：0.067" L x 0.047" W (1.70mm x 1.20mm)
Height：0.020" (0.50mm)
Current：-
Grade：-
Qualification：-

Download product information

PEMI4QFN/RT,132

Overview

The PEMI4QFN/RT,132 is an EMI/RFI filter component manufactured by NXP USA Inc., classified under LC and RC Networks. It functions as a data line filter designed for surface-mount applications. The device is identified as a passive filter network intended to mitigate electromagnetic interference in electronic circuits.

Feature Summary

Provides EMI/RFI filtering capabilities for data lines
Designed for surface-mount technology integration

Applications

Data line protection in embedded systems

Procurement Notes

Verify the current manufacturing status of this part number before procurement. Documentation indicates that this product may no longer be manufactured. Confirm availability with authorized distributors and check for potential tariff implications if shipping to specific regions such as the United States. Ensure the source document explicitly supports the requested configuration.

Selection Notes

Select this component based on its classification as a dedicated data line filter within the NXP PEMI4QFN series. Consider the requirement for passive EMI suppression in signal paths. Verify compatibility with the target circuit's impedance and frequency characteristics against official datasheet specifications.

Part Context

This component belongs to the NXP PEMI4QFN family of EMI filters. Related variants include PEMI4QFN/RR,132 and PEMI4QFN/HR,132, which share similar packaging and functional categories but may differ in specific electrical parameters. The series offers various channel configurations for passive filtering networks.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing with other PEMI4QFN variants requires verification of specific electrical parameter matches.
