PEMI6CSP/RW,135

Overview

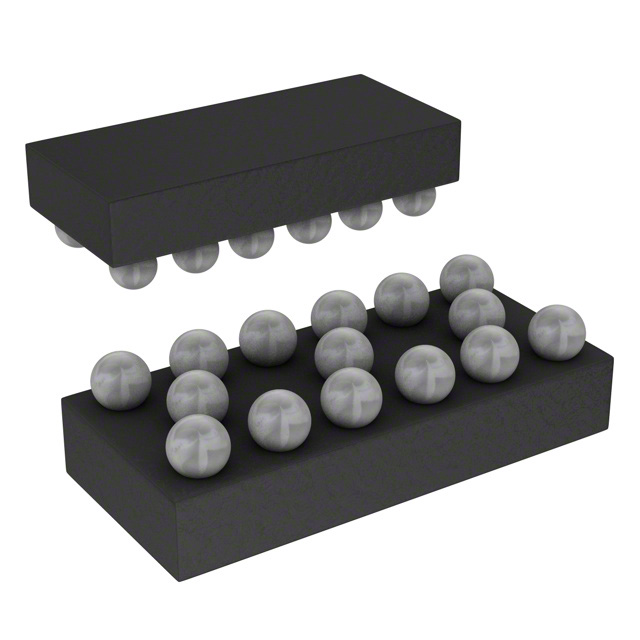

The PEMI6CSP/RW,135 is an RC (Pi) filter designed for ESD protection in surface-mount applications. It integrates resistors with a total resistance of 100 Ohms and capacitors totaling 30pF within a compact package. The component operates within a temperature range of -40°C to 85°C. It utilizes a CSP footprint measuring 2.36mm by 1.05mm. This device provides signal line conditioning while suppressing electrostatic discharge events.

Feature Summary

• Integrates RC filtering network for signal integrity maintenance
• Provides electrostatic discharge protection capabilities
• Utilizes compact chip-scale packaging for space-constrained designs

Applications

• Local Area Network interfaces
• Personal Communication Service ports
• Wide Area Network connections

Procurement Notes

Verify the specific suffix designation to ensure compatibility with required impedance and capacitance values. Confirm that the CSP package dimensions align with the target PCB layout constraints. Check current availability status as distribution channels may vary. Ensure compliance with relevant environmental regulations for the intended market. Validate thermal performance requirements against the specified operating temperature range.

Selection Notes

Choose this component when integrated ESD protection and signal filtering are required in minimal space. The 100-ohm resistance matches common differential pair impedances. The 30pF capacitance value helps attenuate high-frequency noise without excessive signal degradation. Consider the small form factor for dense board layouts where discrete components are impractical.

Part Context

This part belongs to the PEMIxCSP series from Nexperia, focusing on compact protection solutions. The series targets high-density electronic assemblies requiring robust interface protection. It complements other discrete protection devices by offering combined filtering and suppression in a single package. The design supports modern miniaturization trends in consumer and industrial electronics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Distributors indicate that MFR recommended substitutes exist but do not list specific alternative part numbers. Verify functional equivalence with any proposed replacement before implementation.
