Product Detailed Parameters
- Description：FILTER RC(PI) 100 OHMS ESD SMD
- Series：PEMIxCSP
- Mfr：Nexperia USA Inc.
- Package：Tape & Reel (TR)
- Type：Low Pass
- Filter Order：2nd
- Technology：RC (Pi)
- Number of Channels：8
- Center / Cutoff Frequency：98MHz (Cutoff)
- Attenuation Value：32dB @ 800MHz ~ 3GHz
- Resistance - Channel (Ohms)：100
- Values：R = 100Ohms, C = 54pF
- ESD Protection：Yes
- Operating Temperature：-40°C ~ 85°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：-
- Mounting Type：Surface Mount

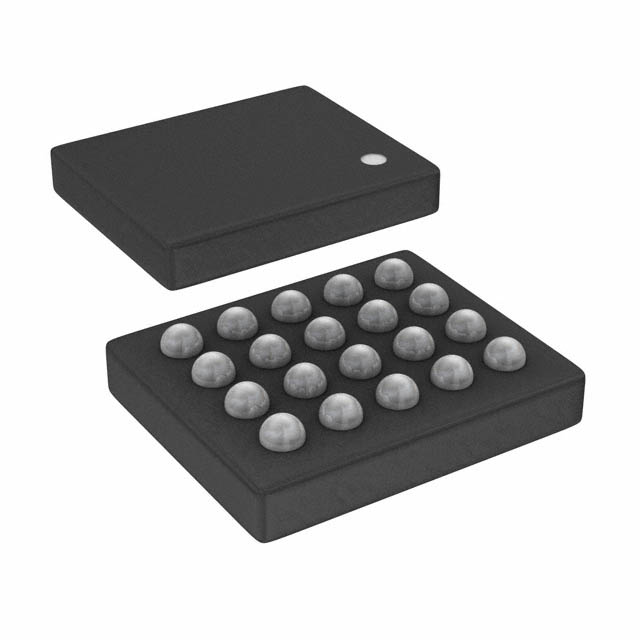

- Package / Case：20-UFBGA, WLCSP
- Size / Dimension：0.124" L x 0.041" W (3.16mm x 1.05mm)
- Height：0.026" (0.65mm)
- Current：33 mA
- Grade：-
- Qualification：-
Download product information
Overview
The PEMI8CSP/RW/P,135 is an integrated passive filter network manufactured by Nexperia USA Inc. It features an RC (Pi) topology with a second-order filter configuration. The component provides ESD protection and is designed for surface mount applications in the CSP package. It is specified for use on data lines within mobile devices, offering signal integrity enhancement alongside electrostatic discharge mitigation in compact electronic designs.
Feature Summary
- Integrates RC Pi-filter topology with ESD protection capabilities
- Second-order filtering configuration for signal conditioning
- Compact surface-mount packaging suitable for space-constrained layouts
Applications
- Data line protection in mobile devices
- Signal integrity enhancement in portable electronics
- ESD mitigation for high-speed data interfaces
Procurement Notes
Verify the specific suffix RW/P against the official Nexperia datasheet to confirm pinout and electrical characteristics. Ensure the component status is current as sources indicate potential obsolescence. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components. Confirm RoHS3 compliance requirements match your manufacturing standards before procurement.
Selection Notes
Select this component when a combined solution for ESD protection and low-pass filtering is required on data lines. The second-order RC Pi structure offers superior attenuation compared to single-stage filters. Consider the CSP package size for board real estate constraints. Verify that the internal resistance and capacitance values meet the specific frequency response requirements of the target application interface.
Part Context
This part belongs to Nexperia's family of integrated passive device networks. These components consolidate multiple discrete passive elements into a single footprint. The series targets applications requiring reduced bill-of-materials count and improved assembly reliability. The integration of ESD protection with filtering functions simplifies circuit design for sensitive digital interfaces.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing footprints if considering alternative manufacturers. Check for equivalent RC values and ESD performance ratings in cross-reference databases.
