PESMA1006

$2.56

Description：2400-2500/ 5150-5825 MHz, 3.15/6
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:21f1da288adb Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PESMA1006 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2400-2500/ 5150-5825 MHz, 3.15/6. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PESMA1006

Description：2400-2500/ 5150-5825 MHz, 3.15/6
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.487GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz
Antenna Type：Stamped Metal
Number of Bands：2
VSWR：2
Return Loss：-
Gain：3.15dBi, 6.52dBi
Features：Cable - 149.86mm
Termination：I-PEX
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：1.380" (35.05mm)
Applications：802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™
Power - Max：1 W

Antennas RF datasheet and documents for PESMA1006

PESMA1006

Antennas RF Overview

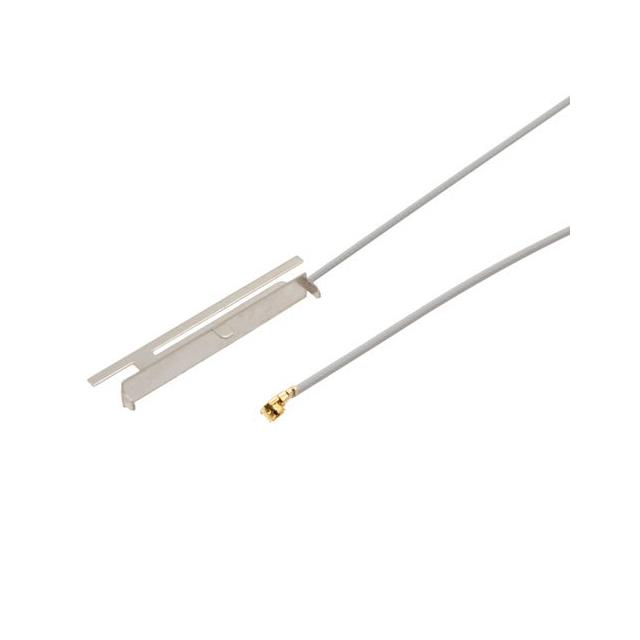

The Pasternack PESMA1006 is a dual-band stamped metal surface mount antenna designed for embedded applications. It operates in the 2400-2500 MHz band with a gain of 3.15 dBi and the 5150-5825 MHz band with a gain of 6.52 dBi. The component features an IPEX connector interface and is constructed from stamped metal materials suitable for compact integration.

Antennas RF Feature Summary

Dual-band operation supporting 2.4 GHz and 5 GHz wireless standards
Stamped metal construction for structural integrity
Surface mount design for PCB embedding
Integrated IPEX connector interface

Antennas RF Applications

Wi-Fi routers and access points
Bluetooth devices
IoT modules
M2M communication equipment

Antennas RF Procurement Notes

Verify the specific connector type and mounting orientation against the target PCB layout before procurement. Confirm that the IPEX interface matches the system's mating requirements. Ensure the surface mount footprint aligns with the mechanical dimensions provided in the official datasheet to prevent assembly errors.

Antennas RF Selection Notes

Select this component when a low-profile, dual-band solution is required for embedded wireless systems. The choice depends on the need for simultaneous 2.4 GHz and 5 GHz coverage within a constrained form factor. Evaluate the gain specifications relative to the intended range and interference environment.

Antennas RF Part Context

This part belongs to Pasternack's line of RF antennas for consumer and industrial electronics. It addresses the demand for compact wireless connectivity in space-constrained devices. The stamped metal technology offers a balance between performance and manufacturing cost for high-volume embedded applications.
