PESMA1008 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2400-2500/ 5150-5825 MHz, 2.82/3. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PESMA1008
- Description：2400-2500/ 5150-5825 MHz, 2.82/3
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.45GHz, 5.487GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz
- Antenna Type：Stamped Metal
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：2.82dBi, 3.43dBi
- Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
- Termination：Screw-Mount
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：1.460" (37.00mm)
- Applications：802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™
- Power - Max：1 W
Antennas RF datasheet and documents for PESMA1008
Antennas RF Overview

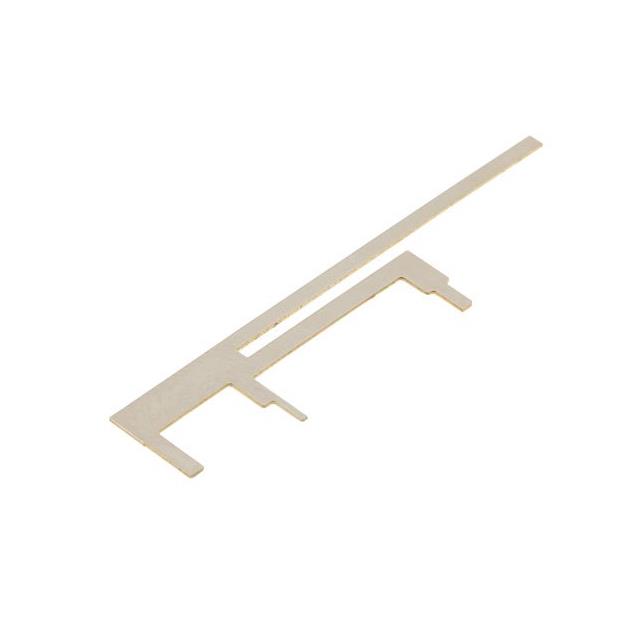

The Pasternack PESMA1008 is a dual-band embedded antenna designed for wireless applications. It operates in the 2400-2500 MHz band with a gain of 2.82 dBi and the 5150-5825 MHz band with a gain of 3.43 dBi. The component utilizes stamped metal construction to support omni-directional radiation patterns suitable for access points and routers.
Antennas RF Feature Summary
- Dual-band operation supporting 2.4 GHz and 5 GHz wireless standards
- Stamped metal construction for structural integrity
- Embedded design intended for integration into AP or router hardware
Antennas RF Applications
- Access Point integration
- Router embedding
- IoT device connectivity
Antennas RF Procurement Notes
Verify the specific datasheet version for exact impedance and VSWR specifications before integration. Confirm mechanical mounting dimensions against the target enclosure design. Ensure the connector type matches the system interface requirements. Validate regulatory compliance status for the intended deployment region.
Antennas RF Selection Notes
Select this model when dual-band coverage within the specified frequency ranges is required. Consider the stamped metal build for cost-effective embedded solutions. Evaluate the gain levels against link budget calculations for both bands. Ensure the physical form factor fits the internal space constraints of the host device.
Antennas RF Part Context
This component belongs to the Pasternack RF antenna portfolio, specifically targeting embedded wireless infrastructure. It complements other microwave and RF components by providing essential signal transmission capabilities for modern networking equipment.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing designs if considering alternative antennas from different manufacturers.
