PESMA1010 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2400-2500 MHz, 3.67 dBi, Stamped. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PESMA1010
- Description：2400-2500 MHz, 3.67 dBi, Stamped
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Stamped Metal
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：3.67dBi
- Features：Cable - 144.78mm
- Termination：I-PEX
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：1.090" (27.69mm)
- Applications：802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™
- Power - Max：1 W
Antennas RF datasheet and documents for PESMA1010
Antennas RF Overview

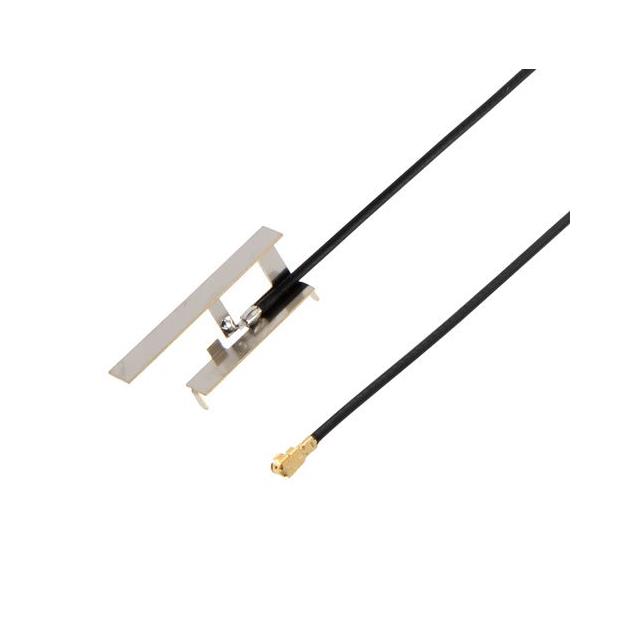

The Pasternack PESMA1010 is a single-band embedded antenna designed for access point and router applications. It operates within the 2400 MHz to 2500 MHz frequency range, providing a gain of 3.67 dBi. The unit features a stamped metal construction and utilizes an IPEX connector interface. This omni-directional antenna is engineered for integration into wireless networking hardware.
Antennas RF Feature Summary
- Omni-directional radiation pattern suitable for broad coverage
- Stamped metal housing for structural integrity
- Integrated IPEX connector for direct board attachment
Antennas RF Applications
- Access Point (AP) integration
- Router embedded installation
- Wireless networking hardware development
Antennas RF Procurement Notes
Verify the specific connector type and impedance requirements against your PCB layout before ordering. Confirm that the operating frequency range aligns with your network standards. Check RoHS compliance documentation if environmental regulations apply to your manufacturing process. Ensure the mechanical dimensions fit within the designated enclosure space.
Antennas RF Selection Notes
Select this component when a low-profile, single-band solution is required for 2.4 GHz Wi-Fi environments. The IPEX interface simplifies assembly compared to soldered or bulkhead options. Consider the 3.67 dBi gain as adequate for standard indoor coverage scenarios where high-gain directional antennas are unnecessary.
Antennas RF Part Context
This model belongs to Pasternack's line of embedded antennas for consumer electronics. It complements other RF components by providing standardized connectivity for wireless modules. The design focuses on cost-effective manufacturing while maintaining consistent performance metrics for mass-produced devices.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing IPEX mating connectors if sourcing alternatives from other manufacturers.
