PEWAN042-10KF

Antennas RF Overview

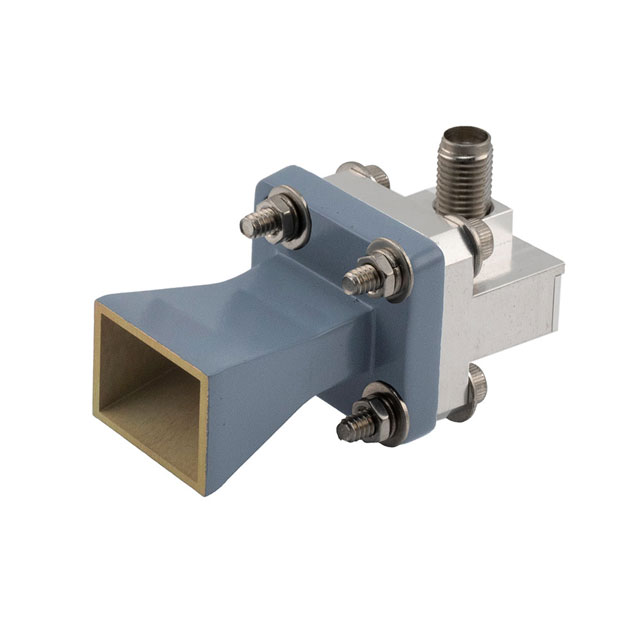

The PEWAN042-10KF is a general-purpose horn antenna manufactured by Pasternack. It utilizes a 2.92mm female waveguide mount interface for secure connection to compatible waveguide systems. The component operates within the WR-42 waveguide frequency range, covering 18 GHz to 26.5 GHz. This configuration ensures reliable signal transmission in high-frequency applications requiring precise waveguide integration and standardized mounting interfaces.

Antennas RF Feature Summary

• Features a 2.92mm female waveguide mount for standardized high-frequency connectivity
• Designed as a general-purpose horn antenna for broad application versatility
• Operates within the WR-42 waveguide frequency band

Antennas RF Applications

• Microwave communication systems
• Test and measurement instrumentation
• Radar systems

Antennas RF Procurement Notes

Verify the specific suffix '10KF' against the manufacturer's current documentation to confirm exact flange type and material specifications. Ensure compatibility with WR-42 waveguide interfaces. Confirm regulatory compliance status such as RoHS directly with the supplier prior to ordering.

Antennas RF Selection Notes

Select this model when a WR-42 waveguide interface is required for frequencies between 18 GHz and 26.5 GHz. The 2.92mm female mount provides a secure connection method. Consider the general-purpose nature of the horn design for standard radiation pattern requirements rather than highly specialized beam shaping.

Antennas RF Part Context

This component belongs to Pasternack's RF antenna portfolio, specifically focusing on waveguide-mounted solutions. It complements their range of coaxial and connectorized antennas by providing options for higher frequency waveguide applications. The product line supports infrastructure requiring robust microwave interconnects.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
