PEWAN062-20

$1,334.84

Description：WR62 GAIN HORN 12.4-18GHZ 20DBI
Series：-
Mfr：Pasternack
Package：Bulk

SKU:78ea0e85d00b Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PEWAN062-20 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is WR62 GAIN HORN 12.4-18GHZ 20DBI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PEWAN062-20

Description：WR62 GAIN HORN 12.4-18GHZ 20DBI
Series：-
Mfr：Pasternack
Package：Bulk
RF Family/Standard：Waveguide
Frequency Group：Ku Band (12GHz ~ 18GHz)
Frequency (Center/Band)：15.2GHz
Frequency Range：12.4GHz ~ 18GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.3
Return Loss：-
Gain：20dBi
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Waveguide Flange Mount
Height (Max)：-
Applications：-
Power - Max：-

Antennas RF datasheet and documents for PEWAN062-20

PEWAN062-20

Antennas RF Overview

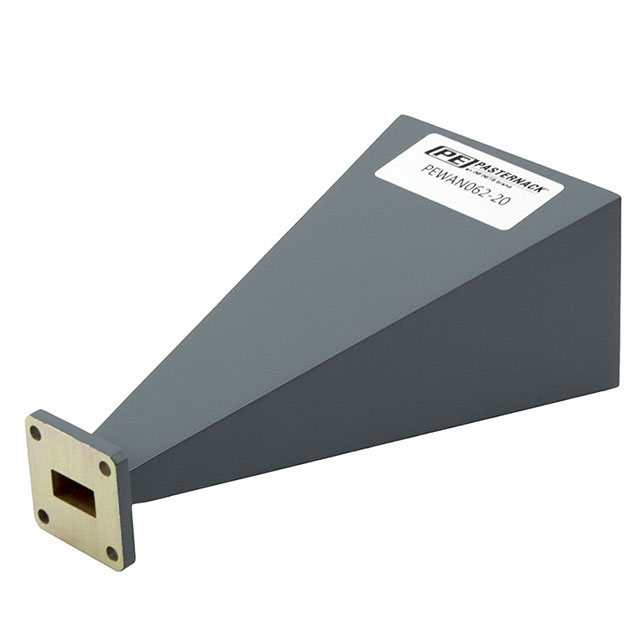

The Pasternack PEWAN062-20 is a WR-62 standard gain horn antenna designed for Ku Band applications. It operates within a frequency range of 12.4 GHz to 18 GHz and provides a nominal gain of 20 dBi. The antenna features an End Launch N Female connector interface, facilitating connection to coaxial systems. Key beam characteristics include a horizontal half-power beam width of 17.5 degrees and a vertical half-power beam width of 17.3 degrees. This component is engineered for high-performance microwave signal transmission and reception in waveguide environments.

Antennas RF Feature Summary

Standard gain horn design optimized for Ku Band frequency operations
End Launch N Female connector for direct coaxial integration
Nominal 20 dBi gain with defined horizontal and vertical beam widths

Antennas RF Applications

Microwave point-to-point communication links
Satellite ground station uplink and downlink systems
Radar test and measurement setups

Antennas RF Procurement Notes

Verify the specific connector orientation and flange type required for your system integration before ordering. Confirm that the operating frequency range aligns with your application's spectral requirements. Check for availability of compatible radome covers if environmental protection is necessary. Ensure that mating connectors match the N Female specification to maintain impedance continuity.

Antennas RF Selection Notes

Select this model when a fixed-gain solution is preferred over adjustable antennas for the 12.4–18 GHz band. Consider the physical dimensions and mounting requirements associated with WR-62 waveguide interfaces. Evaluate whether the 20 dBi gain meets the link budget calculations for your specific distance and power constraints. Compare against other Pasternack horn variants if different beam widths or connector styles are needed.

Antennas RF Part Context

This antenna belongs to Pasternack’s line of standard gain horn antennas, which are widely used in RF and microwave engineering. The WR-62 designation indicates the waveguide size, corresponding to the specified frequency range. These components serve as critical interfaces between waveguide systems and coaxial cables, ensuring efficient energy transfer with minimal loss in high-frequency applications.
