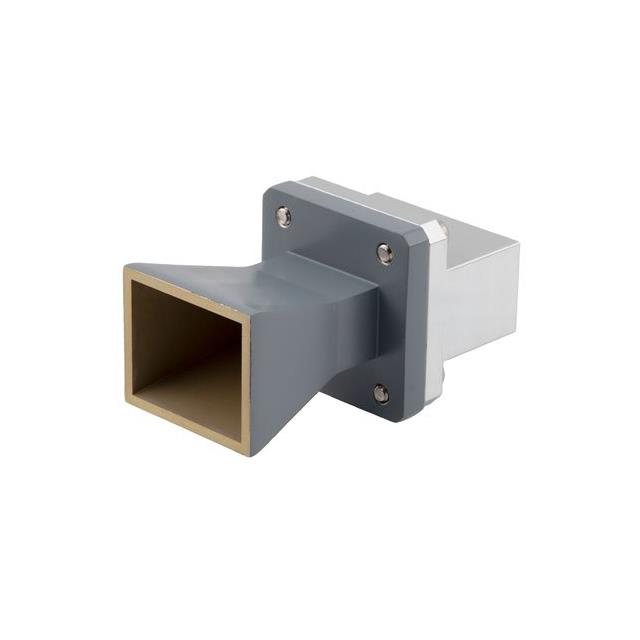

PEWAN075-10ELSF is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is WR75 GAIN HRN 10-15GHZ 10DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PEWAN075-10ELSF
- Description：WR75 GAIN HRN 10-15GHZ 10DBI
- Series：-
- Mfr：Pasternack
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：Wide Band
- Frequency (Center/Band)：12.5GHz
- Frequency Range：10GHz ~ 15GHz
- Antenna Type：Horn
- Number of Bands：1
- VSWR：1.4
- Return Loss：-
- Gain：10dBi
- Features：Cable - 305mm, Cable - 3.048m, Cable - 7.62m
- Termination：SMA Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Waveguide Mount
- Height (Max)：1.508" (38.30mm)
- Applications：General Purpose
- Power - Max：-
Antennas RF datasheet and documents for PEWAN075-10ELSF
Antennas RF Overview
The Pasternack PEWAN075-10ELSF is a WR-75 standard gain pyramidal horn antenna designed for the 10 GHz to 15 GHz frequency range. It features an end-launch SMA female connector and provides a typical gain of 10 dBi. The vertical beam width is typically 51.6 degrees. This waveguide horn utilizes a flange mount configuration, ensuring secure installation in RF test setups and measurement applications requiring precise signal characterization within the specified band.
Antennas RF Feature Summary
- Standard gain pyramidal horn design for consistent radiation patterns
- End-launch SMA female connector for direct coaxial interface
- WR-75 waveguide flange mount for secure mechanical integration
Antennas RF Applications
- RF component testing and characterization
- Antenna pattern measurement systems
- Microwave laboratory calibration setups
Antennas RF Procurement Notes
Verify that the required connector type matches the end-launch SMA female specification. Confirm the WR-75 waveguide interface compatibility with existing test fixtures. Ensure the operating environment supports the 10 GHz to 15 GHz frequency range requirements for accurate performance validation.
Antennas RF Selection Notes
Select this model when a fixed 10 dBi gain is required for the 10-15 GHz band. The SMA female termination simplifies connection to standard coaxial cables without additional adapters. Consider the 51.6-degree vertical beam width for near-field or far-field measurement distance calculations.
Antennas RF Part Context
This component belongs to Pasternack's comprehensive waveguide antenna series. It serves as a reference radiator for measuring other antennas or components. The WR-75 size corresponds to the specific rectangular waveguide dimensions necessary for the X-band frequency operations defined by industry standards.
Antennas RF Replacement Considerations
PEWAN075-10SF offers similar specifications with a different connector orientation. PEWAN075-10ELNF provides the same gain but uses an N-type connector instead of SMA.
