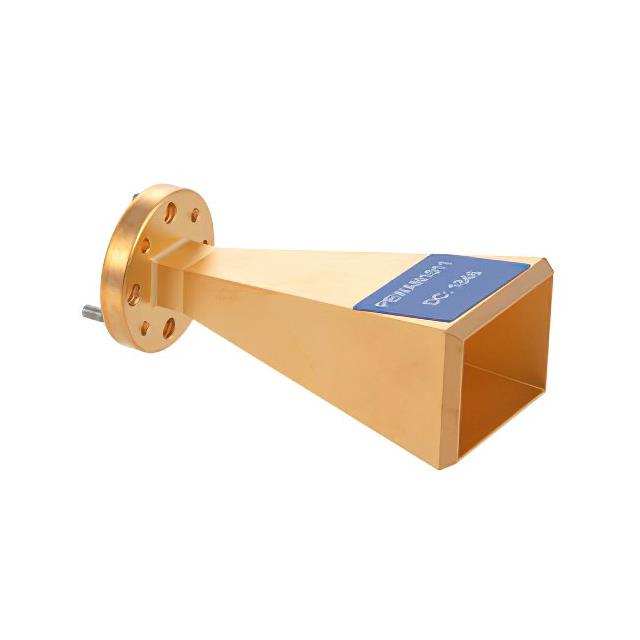

PEWAN1011 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is WR-15 Waveguide Standard Gain Ho. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PEWAN1011
- Description：WR-15 Waveguide Standard Gain Ho
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：General ISM
- Frequency Group：SHF (f > 4GHz)
- Frequency (Center/Band)：62.5GHz
- Frequency Range：50GHz ~ 75GHz
- Antenna Type：Horn
- Number of Bands：1
- VSWR：1.15
- Return Loss：-
- Gain：21dBi
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Waveguide Mount
- Height (Max)：0.650" (16.51mm)
- Applications：General Purpose
- Power - Max：-
Antennas RF datasheet and documents for PEWAN1011
Antennas RF Overview
The PEWAN1011 is a waveguide standard gain horn antenna manufactured by Pasternack Enterprises. It is designed for general-purpose applications and features a waveguide mount configuration. The component operates within the microwave frequency spectrum, providing directional signal transmission and reception capabilities suitable for various RF systems requiring standardized gain performance.
Antennas RF Feature Summary
- Standard gain horn design for consistent radiation patterns
- Waveguide mounting interface for secure integration
- General-purpose construction for broad application compatibility
Antennas RF Applications
- Microwave communication links
- Test and measurement setups
- Radar system components
Antennas RF Procurement Notes
Verify the specific frequency range and physical dimensions against your system requirements before ordering. Confirm that the waveguide flange type matches your existing infrastructure. Ensure environmental conditions align with the commercial grade specifications provided in the official datasheet to guarantee reliable operation.
Antennas RF Selection Notes
Select this model when a standard gain solution is required for waveguide-based systems. Consider the operating frequency band to ensure it covers your application needs. Evaluate the mechanical constraints of the waveguide mount to confirm fitment within your assembly layout.
Antennas RF Part Context
This part belongs to Pasternack's line of RF antennas, specifically focusing on waveguide technology. It complements their portfolio of microwave components designed for high-frequency applications. The product supports engineers needing reliable passive radiating elements for signal distribution or collection tasks.
Antennas RF Replacement Considerations
Consult the official datasheet for exact dimensional tolerances and frequency limits when evaluating substitutes. Ensure any replacement maintains the same waveguide interface standard to preserve mechanical integrity and electrical performance without modification.
