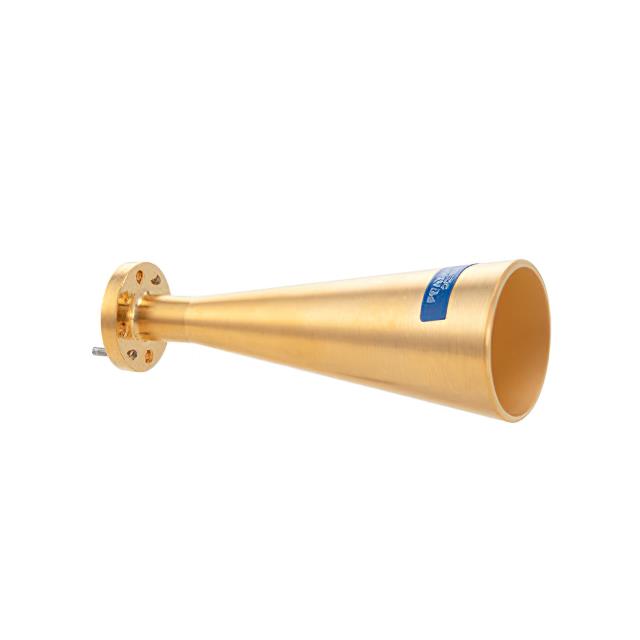

PEWAN1056 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is WR-10 Waveguide Conical Gain Hor. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PEWAN1056
- Description：WR-10 Waveguide Conical Gain Hor
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：General ISM
- Frequency Group：SHF (f > 4GHz)
- Frequency (Center/Band)：82GHz
- Frequency Range：77GHz ~ 87GHz
- Antenna Type：Horn
- Number of Bands：1
- VSWR：1.15
- Return Loss：-
- Gain：25dBi
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Waveguide Mount
- Height (Max)：2.910" (73.91mm)
- Applications：General Purpose
- Power - Max：-
Antennas RF datasheet and documents for PEWAN1056
Antennas RF Overview
The Pasternack PEWAN1056 is a conical gain horn waveguide antenna designed for high-frequency microwave applications. It operates within the frequency range of 77 GHz to 87 GHz, covering the E-band spectrum. The component functions as a general-purpose antenna suitable for various RF and microwave systems requiring directional signal transmission or reception in this specific band.
Antennas RF Feature Summary
- Conical gain horn waveguide design for directional performance
- Operates in the 77 GHz to 87 GHz frequency range
- General-purpose application suitability
Antennas RF Applications
- E-band wireless communication systems
- Microwave test and measurement setups
- Point-to-point radio links
Antennas RF Procurement Notes
Verify the exact frequency coverage and connector interface specifications against the official datasheet before procurement. Confirm that the operating environment matches the antenna's design parameters. Ensure compatibility with existing waveguide components in the system chain.
Antennas RF Selection Notes
Select this model when an E-band (77-87 GHz) solution is required. Consider the physical dimensions and mounting requirements for integration. Evaluate if the general-purpose classification meets the specific gain and beamwidth needs of the target application.
Antennas RF Part Context
This component belongs to Pasternack's portfolio of RF antennas and microwave parts. It complements other waveguide components like couplers and adapters offered by the manufacturer for complete system integration.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for equivalent models if this specific configuration is unavailable.
