PEWAN112-15NF

Antennas RF Overview

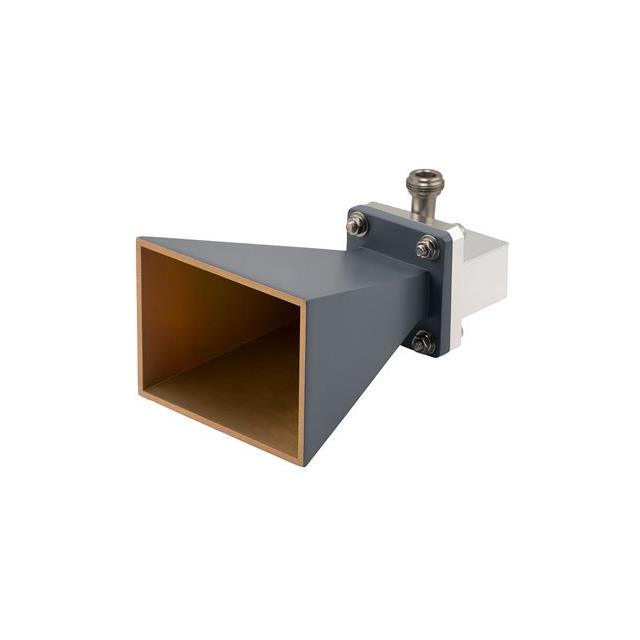

The PEWAN112-15NF is a standard gain horn antenna manufactured by Pasternack, designed for the WR-112 waveguide band. It operates within a frequency range of 7.05 GHz to 11 GHz and provides a nominal gain of 15 dBi. The component features an N Female connector interface, facilitating integration into microwave test and measurement setups. Constructed for high-frequency performance, it serves as a precision radiating element for applications requiring directional transmission or reception in the millimeter-wave spectrum.

Antennas RF Feature Summary

• Standard gain horn design optimized for the WR-112 waveguide band
• Provides consistent 15 dBi gain across the operational frequency range
• Equipped with an N Female connector for secure RF interfacing

Antennas RF Applications

• Microwave test and measurement systems
• Antenna characterization and pattern measurement
• Point-to-point communication links in the 7-11 GHz band

Antennas RF Procurement Notes

Verify the specific connector type and flange compatibility before procurement. Confirm that the operating environment aligns with the specified 7.05 GHz to 11 GHz frequency range. Ensure that the WR-112 waveguide dimensions match the system requirements. Check for any environmental sealing needs if deployed outside controlled laboratory conditions.

Antennas RF Selection Notes

Select this model when a fixed 15 dBi gain is required for the WR-112 band. Consider the N Female interface for cable connectivity needs. Evaluate physical size constraints against available installation space. Compare against other horn types if variable gain or different polarization is necessary for the specific application scenario.

Antennas RF Part Context

This component belongs to the Pasternack RF Antennas category, specifically within the standard gain horn series. It complements other microwave components such as waveguide adapters and coaxial cables. The product line focuses on providing reliable, high-performance passive elements for radio frequency engineering and wireless infrastructure testing.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not provided in the source documentation. Verify mechanical fit and electrical specifications against alternative models from the same manufacturer or other suppliers offering WR-112 band antennas.
