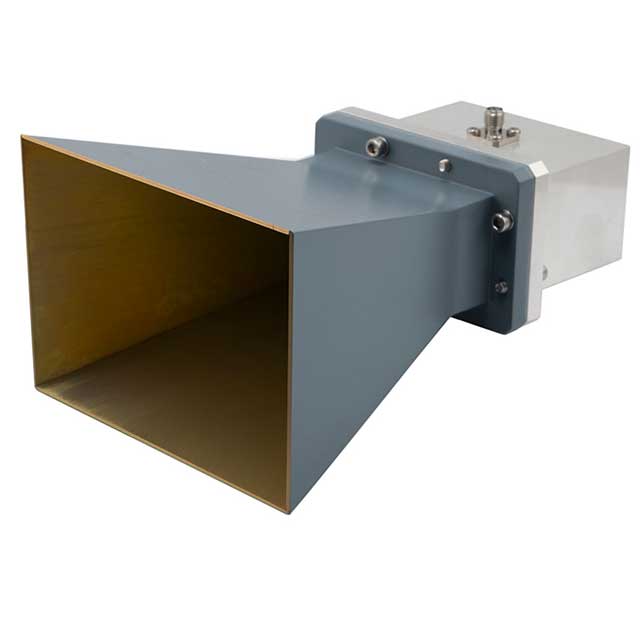

PEWAN229-10SF is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is WR229 GAIN HRN 3.3-4.9GHZ 10DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PEWAN229-10SF
- Description：WR229 GAIN HRN 3.3-4.9GHZ 10DBI
- Series：-
- Mfr：Pasternack
- Package：Case
- RF Family/Standard：-
- Frequency Group：UHF (3GHz ~ 4GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：4.1GHz
- Frequency Range：3.3GHz ~ 4.9GHz
- Antenna Type：Horn
- Number of Bands：1
- VSWR：1.3
- Return Loss：-
- Gain：10dBi
- Features：-
- Termination：SMA Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Waveguide Flange Mount
- Height (Max)：6.134" (155.80mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for PEWAN229-10SF
Antennas RF Overview
The PEWAN229-10SF is a WR-229 standard gain horn antenna manufactured by Pasternack. It operates within the frequency range of 3.3 GHz to 4.9 GHz and provides a nominal gain of 10 dBi. The component features an N female connector interface for signal transmission. Designed for use in radar applications, it utilizes a waveguide structure compatible with the WR-229 rectangular waveguide dimensions.
Antennas RF Feature Summary
- Standard gain horn design optimized for specific microwave frequencies
- N female connector interface for secure RF connection
- WR-229 waveguide compatibility for standardized mounting
Antennas RF Applications
- Radar systems
- Microwave measurement setups
- Test and laboratory environments
Antennas RF Procurement Notes
Verify the exact model suffix against official Pasternack documentation to confirm connector type and gain specifications. Ensure the operating frequency range aligns with system requirements. Confirm availability through authorized distributors as stock levels fluctuate. Check for compliance certifications required for your region before finalizing procurement orders.
Antennas RF Selection Notes
Select this model when a 10 dBi gain is required within the 3.3 to 4.9 GHz band. The N female connector dictates mating cable or adapter choices. Consider physical size constraints due to the WR-229 waveguide form factor. Evaluate environmental ratings if outdoor deployment is planned.
Antennas RF Part Context
This antenna belongs to the PEWAN229 series from Pasternack, which includes various gain options such as the 20 dBi variant. These components are part of Pasternack's broader portfolio of RF antennas and waveguide accessories designed for high-frequency communication and testing applications.
Antennas RF Replacement Considerations
The PEWAN229-20NF offers higher gain but requires verification of impedance and connector compatibility. Cross-referencing datasheets is essential to ensure frequency coverage matches the original requirement without introducing mismatch losses.
