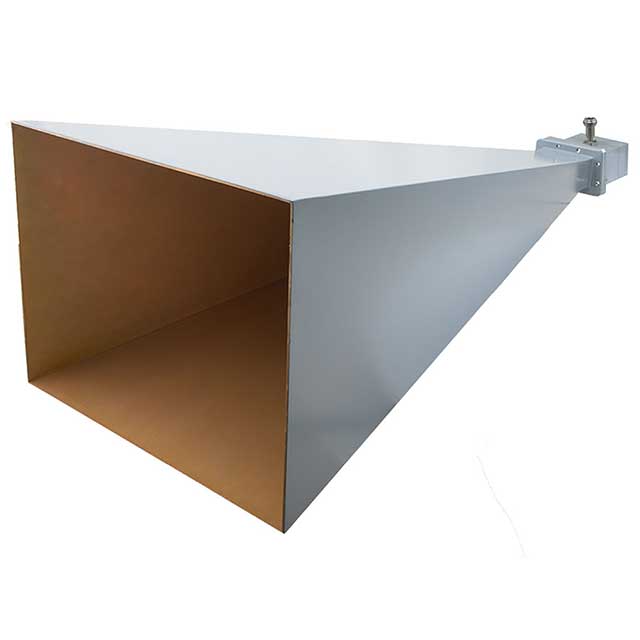

PEWAN229-20NF

$1,635.40

Description：WR229 GAIN HRN 3.3-4.9GHZ 20DBI
Series：-
Mfr：Pasternack
Package：Case

SKU:9da70fcb50ea Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PEWAN229-20NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is WR229 GAIN HRN 3.3-4.9GHZ 20DBI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PEWAN229-20NF

Description：WR229 GAIN HRN 3.3-4.9GHZ 20DBI
Series：-
Mfr：Pasternack
Package：Case
RF Family/Standard：-
Frequency Group：UHF (3GHz ~ 4GHz), SHF (f > 4GHz)
Frequency (Center/Band)：4.1GHz
Frequency Range：3.3GHz ~ 4.9GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.3
Return Loss：-
Gain：20dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Waveguide Flange Mount
Height (Max)：25.369" (644.37mm)
Applications：-
Power - Max：-

Antennas RF datasheet and documents for PEWAN229-20NF

PEWAN229-20NF

Antennas RF Overview

The PEWAN229-20NF is a standard gain horn antenna manufactured by Pasternack, designed for high-frequency applications. It operates within the WR-229 waveguide frequency range and features an N Female connector interface. The component provides a nominal gain of 20 dBi, ensuring efficient signal transmission and reception in specialized RF environments.

Antennas RF Feature Summary

Standard gain horn design optimized for directional radiation patterns
Integrated N Female connector for straightforward system integration
Engineered for operation within the WR-229 waveguide band

Antennas RF Applications

Microwave communication link testing
Antenna pattern measurement systems
RF laboratory calibration setups

Antennas RF Procurement Notes

Verify that the specific order matches the PEWAN229-20NF designation to ensure correct WR-229 compatibility and N Female interface. Confirm operational frequency alignment with system requirements prior to deployment. Review manufacturer documentation for handling instructions related to precision microwave components.

Antennas RF Selection Notes

Select this model when a fixed-gain reference source is required for the WR-229 band. The integrated N Female connector simplifies cabling compared to flanged waveguide interfaces. Ensure environmental conditions support the mechanical construction of the horn assembly.

Antennas RF Part Context

This component belongs to Pasternack's line of standard gain horn antennas. These devices serve as reference standards in RF engineering. The PEWAN229-20NF specifically addresses needs within the WR-229 frequency spectrum, providing consistent performance characteristics for technical evaluations.
