PEWAN650-15NF

$3,429.92

Description：WR-650 Waveguide Standard Gain H
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:a0b167b43758 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PEWAN650-15NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is WR-650 Waveguide Standard Gain H. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PEWAN650-15NF

Description：WR-650 Waveguide Standard Gain H
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：General ISM
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.43GHz
Frequency Range：1.13GHz ~ 1.73GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.25
Return Loss：-
Gain：15dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Screw Mount
Height (Max)：14.960" (379.98mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for PEWAN650-15NF

PEWAN650-15NF

Antennas RF Overview

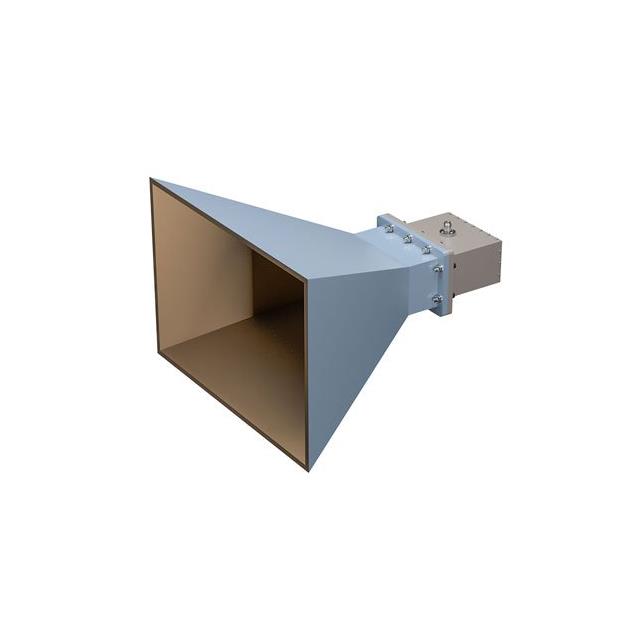

The PEWAN650-15NF is a WR-650 waveguide standard gain horn antenna manufactured by Pasternack. It operates within the frequency range of 1.13 GHz to 1.73 GHz and provides a typical gain of 15 dBi. The antenna features an N-type female connector for coaxial input and utilizes a screw mount installation method. Constructed for general-purpose applications, it delivers consistent vertical and horizontal beam widths of approximately 30 degrees. This component serves as a reliable interconnect solution for RF systems requiring directional transmission or reception in the specified microwave band.

Antennas RF Feature Summary

Standard gain horn design optimized for WR-650 waveguide dimensions
Integrated N-type female connector for direct coaxial interface
Screw mount configuration for secure structural attachment

Antennas RF Applications

RF test and measurement setups
Microwave communication links
General purpose antenna systems

Antennas RF Procurement Notes

Verify that the receiving equipment supports the N-type female interface and matches the WR-650 waveguide specifications. Confirm mechanical mounting requirements align with the screw mount design. Ensure operational frequencies remain within the 1.13 GHz to 1.73 GHz range to maintain specified performance characteristics. Check environmental ratings if outdoor deployment is intended.

Antennas RF Selection Notes

Select this model when a fixed-gain directional antenna is required for the WR-650 band. The integrated N-type connector simplifies integration with standard coaxial cables. Consider the 30-degree beam width for coverage requirements. Evaluate mechanical constraints to ensure the screw mount fits the available infrastructure. Compare against other Pasternack waveguide antennas if different gain or frequency ranges are needed.

Antennas RF Part Context

This part belongs to Pasternack's line of RF antennas designed for microwave frequencies. It complements other waveguide components like the PEWAN650-MNT mount. The product series focuses on providing standardized solutions for laboratory and industrial RF applications, ensuring compatibility with common coaxial interfaces while maintaining waveguide performance standards.
