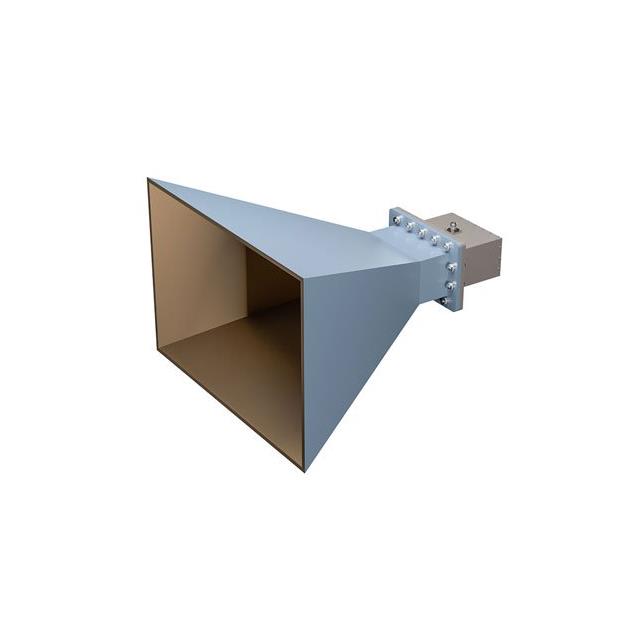

PEWAN770-15NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is WR-770 Waveguide Standard Gain H. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PEWAN770-15NF
- Description：WR-770 Waveguide Standard Gain H
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：General ISM
- Frequency Group：Wide Band
- Frequency (Center/Band)：1.21GHz
- Frequency Range：960MHz ~ 1.46GHz
- Antenna Type：Horn
- Number of Bands：1
- VSWR：1.25
- Return Loss：-
- Gain：15dBi
- Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Screw Mount
- Height (Max)：18.900" (480.06mm)
- Applications：General Purpose
- Power - Max：-
Antennas RF datasheet and documents for PEWAN770-15NF
Antennas RF Overview
The PEWAN770-15NF is a general-purpose horn antenna manufactured by Pasternack. It features an N-type female connector interface and utilizes a screw mount configuration for secure installation. The component is designed for radio frequency applications requiring directional signal transmission or reception.
Antennas RF Feature Summary
- General-purpose horn antenna design
- N-type female connector interface
- Screw mount installation method
Antennas RF Applications
- RF signal transmission
- RF signal reception
- Wireless communication systems
Antennas RF Procurement Notes
Verify the specific model designation against official manufacturer documentation to ensure compatibility with system requirements. Confirm that the N-type female interface and screw mount form factor align with existing infrastructure. Review technical specifications for operational frequency ranges and power handling capabilities before integration.
Antennas RF Selection Notes
Select this component when a general-purpose horn antenna with an N-type female interface is required. Ensure the mounting environment supports the specified screw mount configuration. Evaluate performance needs against available data sheets to confirm suitability for the intended RF application.
Antennas RF Part Context
This component belongs to the Pasternack RF antenna product line, which includes various microwave and radio frequency devices. Pasternack is a manufacturer based in Huntington, California, specializing in RF, microwave, and fiber optic components since 1972.
