PEWGN1012

Overview

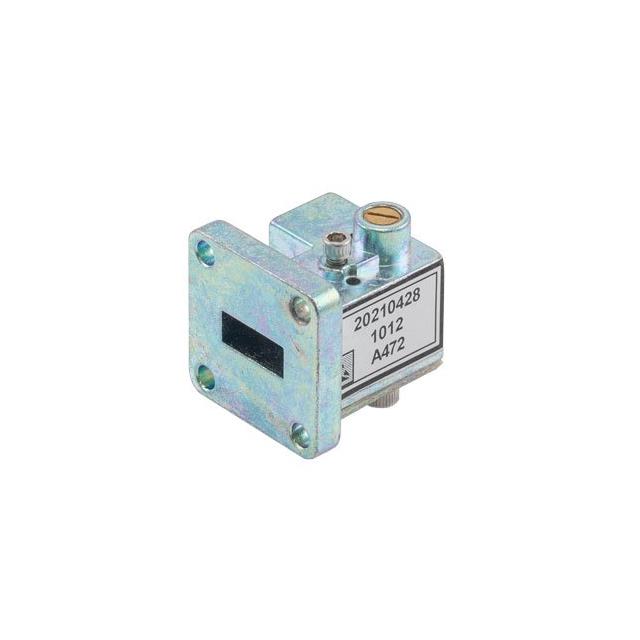

The PEWGN1012 is an RF oscillator manufactured by Pasternack, designed for general-purpose applications. It operates within a frequency range of 23.125 GHz to 25.125 GHz. The component requires a supply voltage of 5V. This device functions as a radio frequency integrated circuit module intended for high-frequency signal generation tasks.

Feature Summary

• Generates stable radio frequency signals within the specified microwave band
• Designed for general-purpose integration into RF systems
• Operates with a standard 5V power supply requirement

Applications

• Microwave communication systems
• Test and measurement equipment
• Signal generation modules

Procurement Notes

Verify the active status and exact frequency specifications against the official datasheet before procurement. Confirm that the 5V supply requirement aligns with your system design. Ensure compatibility with the 23.125 GHz to 25.125 GHz operational range for your specific application needs.

Selection Notes

Select this component when a general-purpose RF oscillator in the 23-25 GHz range is required. Consider the 5V supply constraint during power budgeting. Evaluate thermal management requirements for continuous operation at these frequencies. Verify interface compatibility with existing RF circuitry.

Part Context

This part belongs to Pasternack's portfolio of RF miscellaneous ICs and modules. It serves as a specialized oscillator solution for high-frequency applications. The product is categorized under RF oscillators, distinct from passive components or connectors in the manufacturer's catalog.

Replacement Considerations

No public substitute part numbers are documented. Consult the manufacturer for equivalent alternatives if this specific model becomes unavailable.
