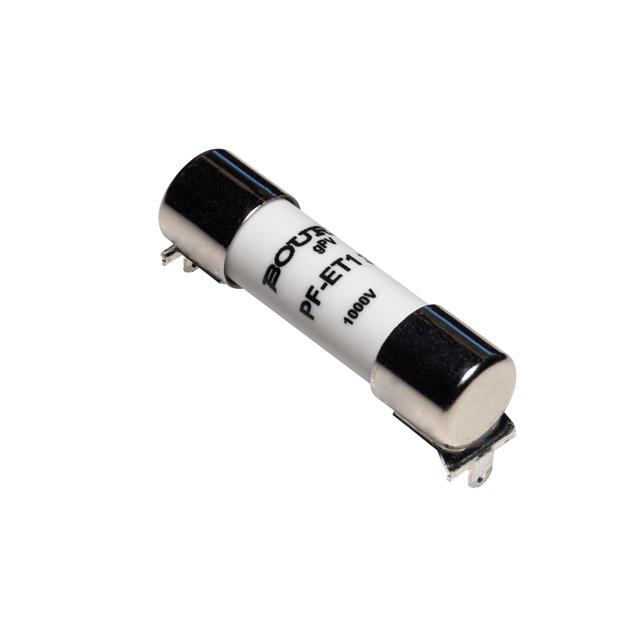

PF-ET1-15

PF-ET1-15 is listed in the Electrical, Specialty Fuses range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is FUSE POWR TH PHOTO 1000VDC 15A. Review the specifications below when checking this part for your BOM.

Electrical, Specialty Fuses specifications for PF-ET1-15

• Description：FUSE POWR TH PHOTO 1000VDC 15A
• Series：POWrFuse™ PF-E
• Mfr：Bourns Inc.
• Package：Tray
• Mounting Type：Through Hole
• Fuse Type：Cartridge, Ceramic
• Current Rating (Amps)：15A
• Voltage Rating - AC：-
• Response Time：-
• Applications：Solar (Photovoltaic)
• Features：-
• Class：-
• Approval Agency：cULus, UL
• Operating Temperature：-55°C ~ 125°C
• Breaking Capacity @ Rated Voltage：20kA
• Package / Case：Radial Bend Cylinder
• Size / Dimension：0.406" Dia x 1.496" L (10.30mm x 38.00mm)
• Voltage Rating - DC：1 kVDC
• Grade：-
• Qualification：-

Electrical, Specialty Fuses datasheet and documents for PF-ET1-15
