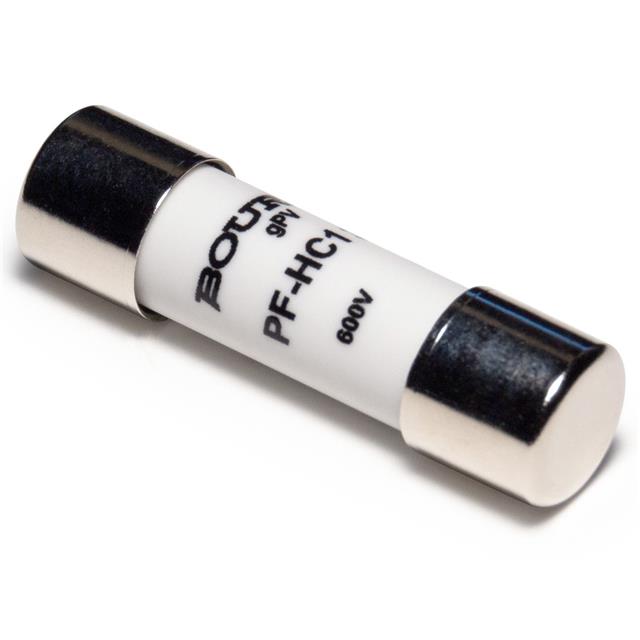

PF-HC1-25

PF-HC1-25 is listed in the Electrical, Specialty Fuses range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is FUSE POWR CART PHOTO 600VDC 25A. Review the specifications below when checking this part for your BOM.

Electrical, Specialty Fuses specifications for PF-HC1-25

• Description：FUSE POWR CART PHOTO 600VDC 25A
• Series：POWrFuse™ PF-H
• Mfr：Bourns Inc.
• Package：Box
• Mounting Type：Requires Holder
• Fuse Type：Cartridge, Ceramic
• Current Rating (Amps)：25A
• Voltage Rating - AC：600 VAC
• Response Time：-
• Applications：Solar (Photovoltaic)
• Features：-
• Class：-
• Approval Agency：cULus, TUV, UL
• Operating Temperature：-55°C ~ 125°C
• Breaking Capacity @ Rated Voltage：150kA AC, 50kA DC
• Package / Case：5AG, 10mm x 38.1mm
• Size / Dimension：0.406" Dia x 1.496" L (10.30mm x 38.00mm)
• Voltage Rating - DC：600 VDC
• Grade：-
• Qualification：-

Electrical, Specialty Fuses datasheet and documents for PF-HC1-25
