PF1868HF

Overview

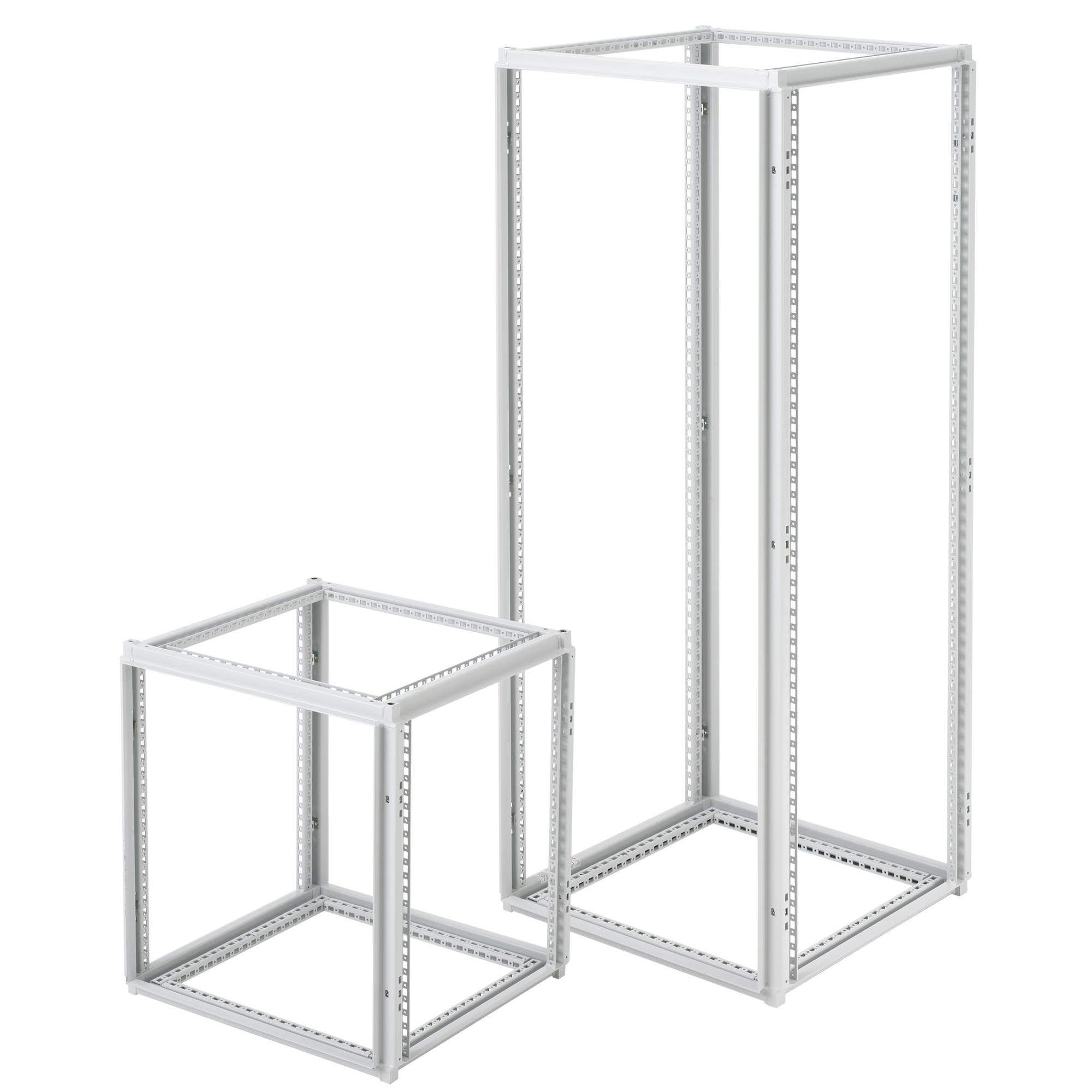

The PF1868HF is an EMC frame manufactured by Hoffman Enclosures, Inc., designed for use in electrical enclosure systems. Constructed from 12-gauge (2.5mm) roll-formed steel with welded corners, it features a gray bare surface finish. The frame dimensions are 1800mm in height, 600mm in width, and 800mm in depth. It utilizes an open roll-formed profile design to ensure complete surface corrosion protection and facilitate assembly.

Feature Summary

• Constructed from 12-gauge roll-formed steel with welded corners for structural integrity
• Open roll-formed profile design ensures complete surface corrosion protection
• Plated finish provides enhanced resistance to environmental degradation

Applications

• Foundation structure for modular electrical enclosures
• EMC shielding frame assemblies
• Industrial control panel frameworks

Procurement Notes

Verify the specific surface treatment requirements against project specifications, as the product description indicates a gray bare surface which may require additional coating depending on the installation environment. Confirm dimensional compatibility with intended door and side panel accessories from the same manufacturer series to ensure proper fitment and assembly alignment.

Selection Notes

Select this frame when a robust, corrosion-resistant foundation is required for custom or modular enclosure builds. The 12-gauge steel construction offers high mechanical strength compared to lighter gauge alternatives. Ensure the application environment aligns with the material's corrosion protection capabilities, considering the open profile design allows for thorough surface coverage during post-processing if necessary.

Part Context

This component belongs to the Hoffman EMC frame series, which provides standardized structural solutions for industrial enclosure manufacturing. These frames serve as the primary skeleton for assembling complete cabinet systems, allowing for the integration of various doors, panels, and internal mounting hardware while maintaining consistent dimensional tolerances across the product line.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model.
